21 Theatre Ranks / 21 Classic Ranks / 12 Dynamic GENISYS Voices
OUR ORGAN INTERIOR
Allen is the only digital church organ builder to fully finish the interior wood of the console to protect it during its many years of use.
All key electronic components are housed within a protective metal chassis to guard against electrical shocks, another Allen exclusive.
ALLEN'S CONSTRUCTION QUALITY
Using select woods and veneers, Allen craftsmen blend modern and traditional woodworking techniques to assure precision shaping and hand-crafted console assembly. No "knock-down" quality in an Allen Organ.
ALLEN EXPRESSION / CRESCENDO PEDALS
While plastic or wood expression pedals can be found on some church organs, they do not meet Allen's demanding quality standards. Cast Aluminum expression shoes are built to last a lifetime!
EXPRESSION SHOE CAGE
Sturdy metal construction fully protects the organ's interior against damage from pests entering the organ console. Just another example of Allen's dedication to quality and our customers.
ALLEN ORGAN - RELIABLE SERVICE
Allen dependability is legendary. Backed by a ten-year parts warranty, Allen Organs require no periodic maintenance or tuning. In the unlikely event that an Allen requires service, it is performed by factory-trained Allen technicians. Allen representatives keep a supply of spare parts on hand for service needs. The modular design found in our organs, ensures quick and easy service, without the necessity for on-site soldering.
CUSTOMER SUPPORT
The relationship between Allen and its customers doesn't end when an instrument is installed. Allen's commitment to customer satisfaction continues long after an organ is installed.
DELUXE CONTROLS

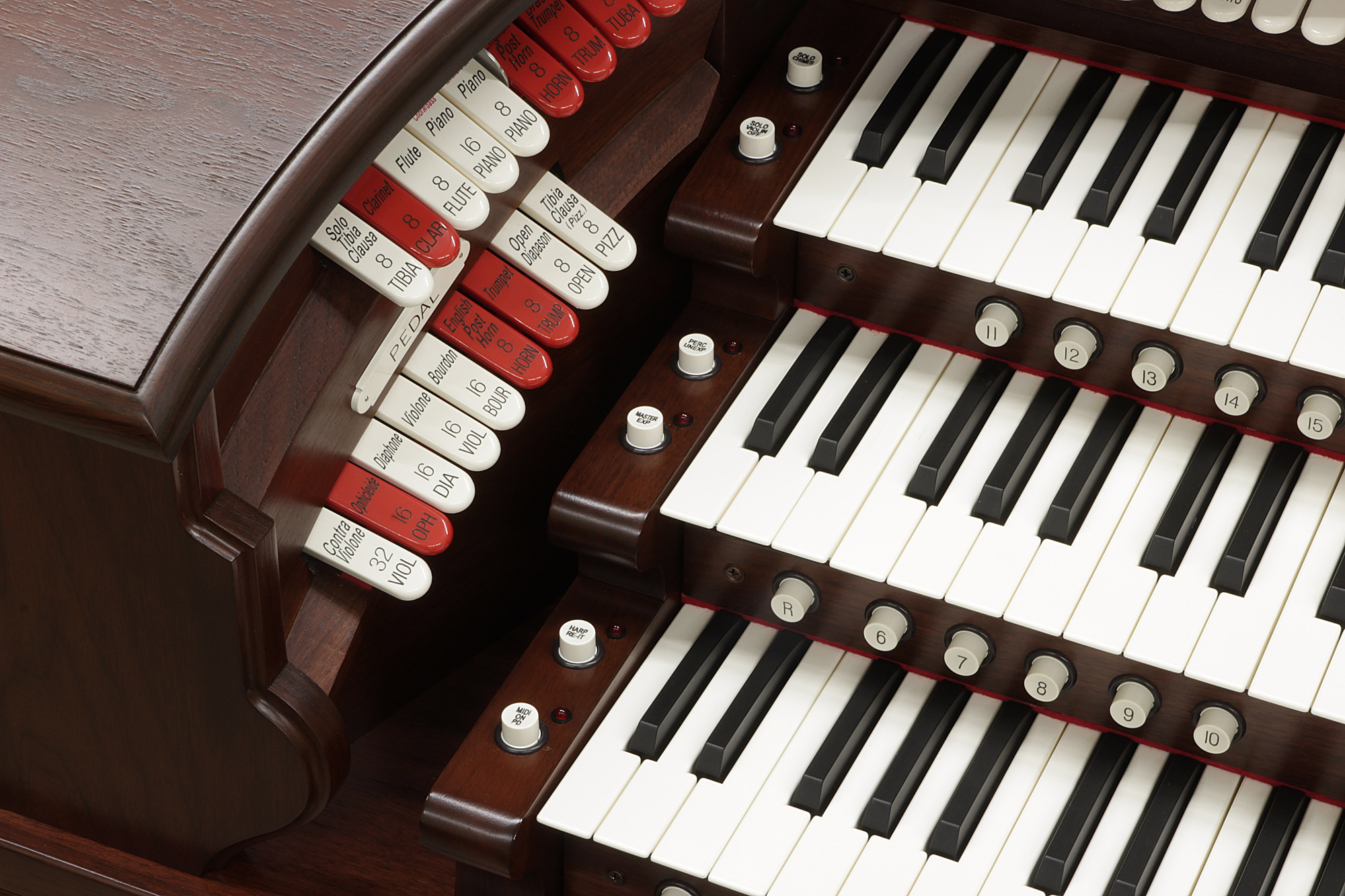

Allen designs and builds its own Theatre organ stop controls to provide the highest quality at affordable prices. From state-of-the-art Lumitech™ Stop Tabs with advanced LED's, to moving Stop Tabs, every control choice reflects Allen's uncompromising standards that ensure years of maintenance-free service.
PREMIUM KEYBOARDS
The exclusive Allen keyboard is designed to allow the musician to feel the music. These keyboards are built with a level of quality that is the envy of the
industry. Each key stick is constructed of wood, felted pivot points and can be individually adjusted to keep them consistent over the long-haul.
ALLEN KEYBOARDS
PLAY VIDEO
The Allen keyboard utilizes sealed contacts and wood keysticks to provide the ultimate in touch and control. The level of quality and adjustability of Allen keyboards makes them the envy of the industry and the choice of discerning musicians.
The key contact, while unseen, is an important part of any church organ. If one fails during a performance, the entire musical program can be compromised. Allen has introduced a maintenance-free system in which a sealed reed switch is engaged by magnet. Neither dust nor the environment will compromise your music program with an Allen Organ.

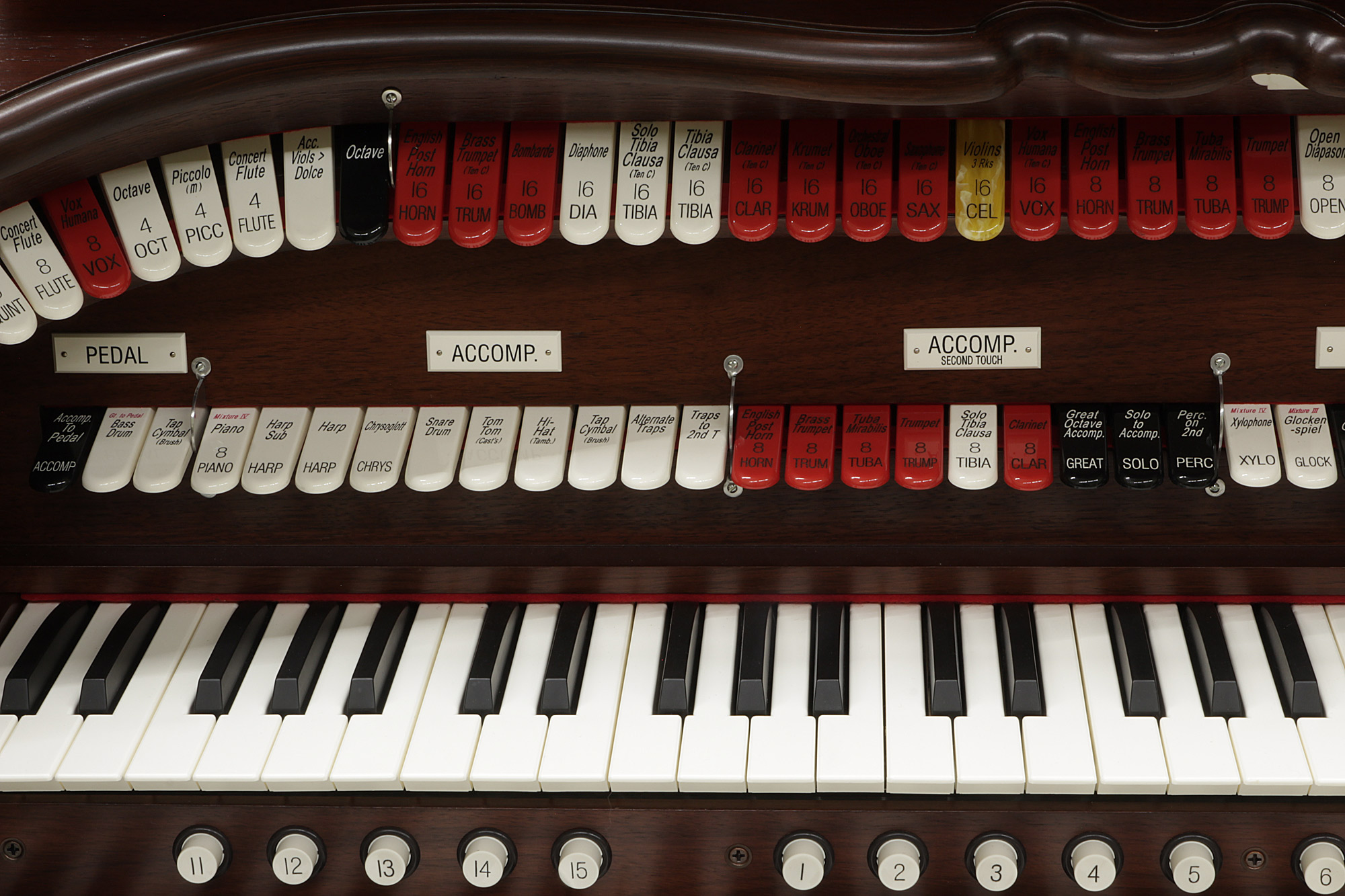

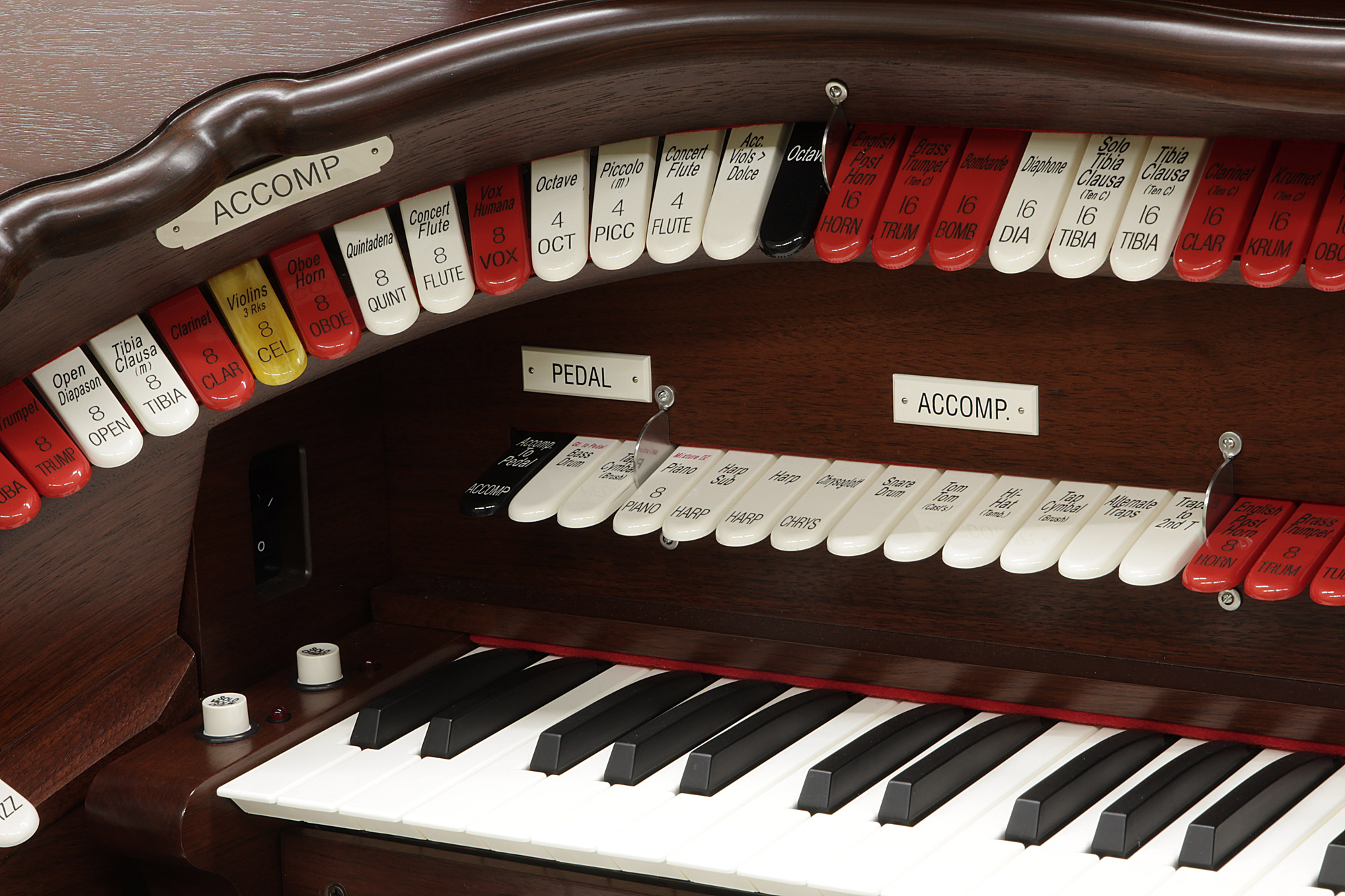

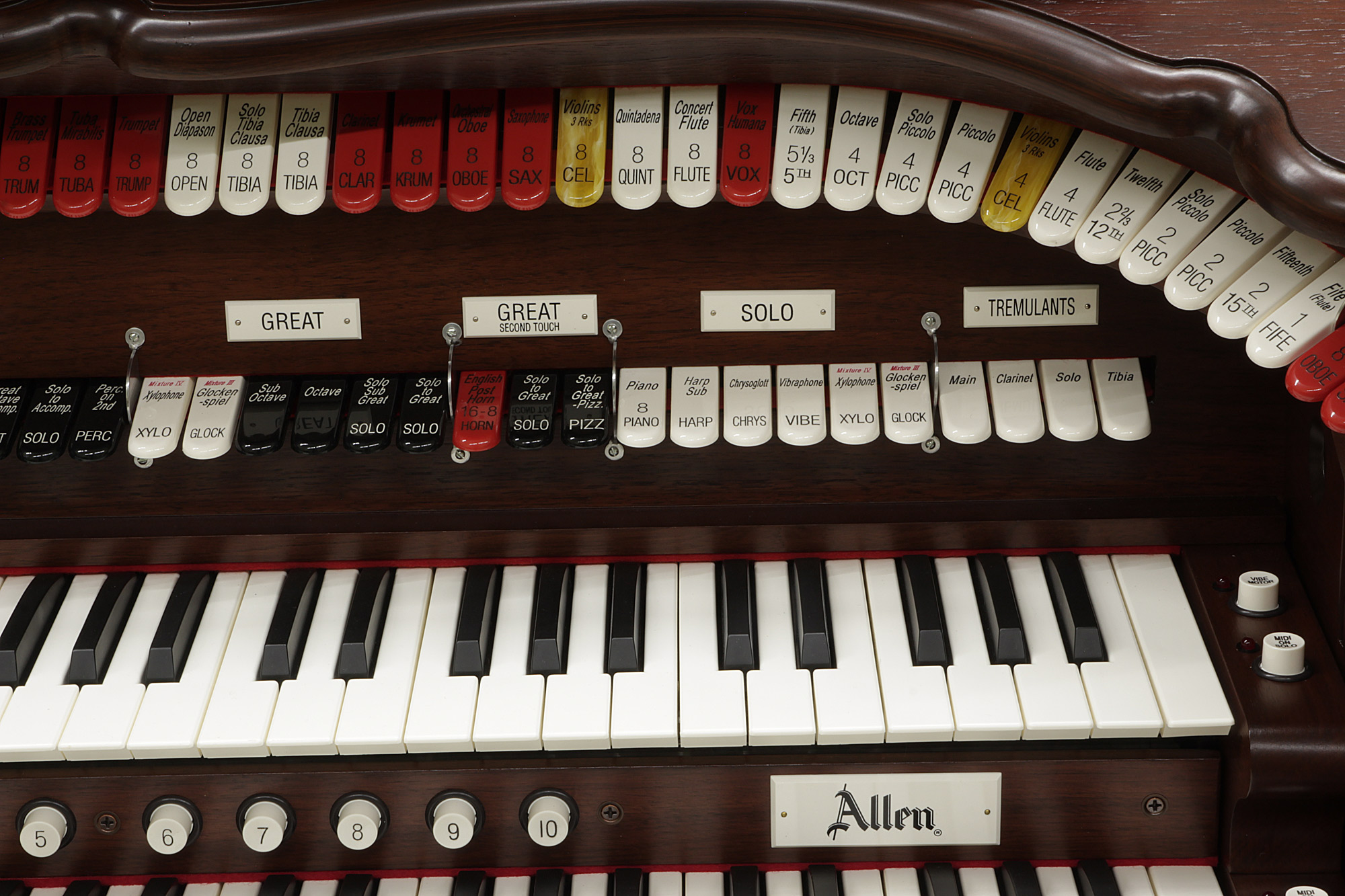

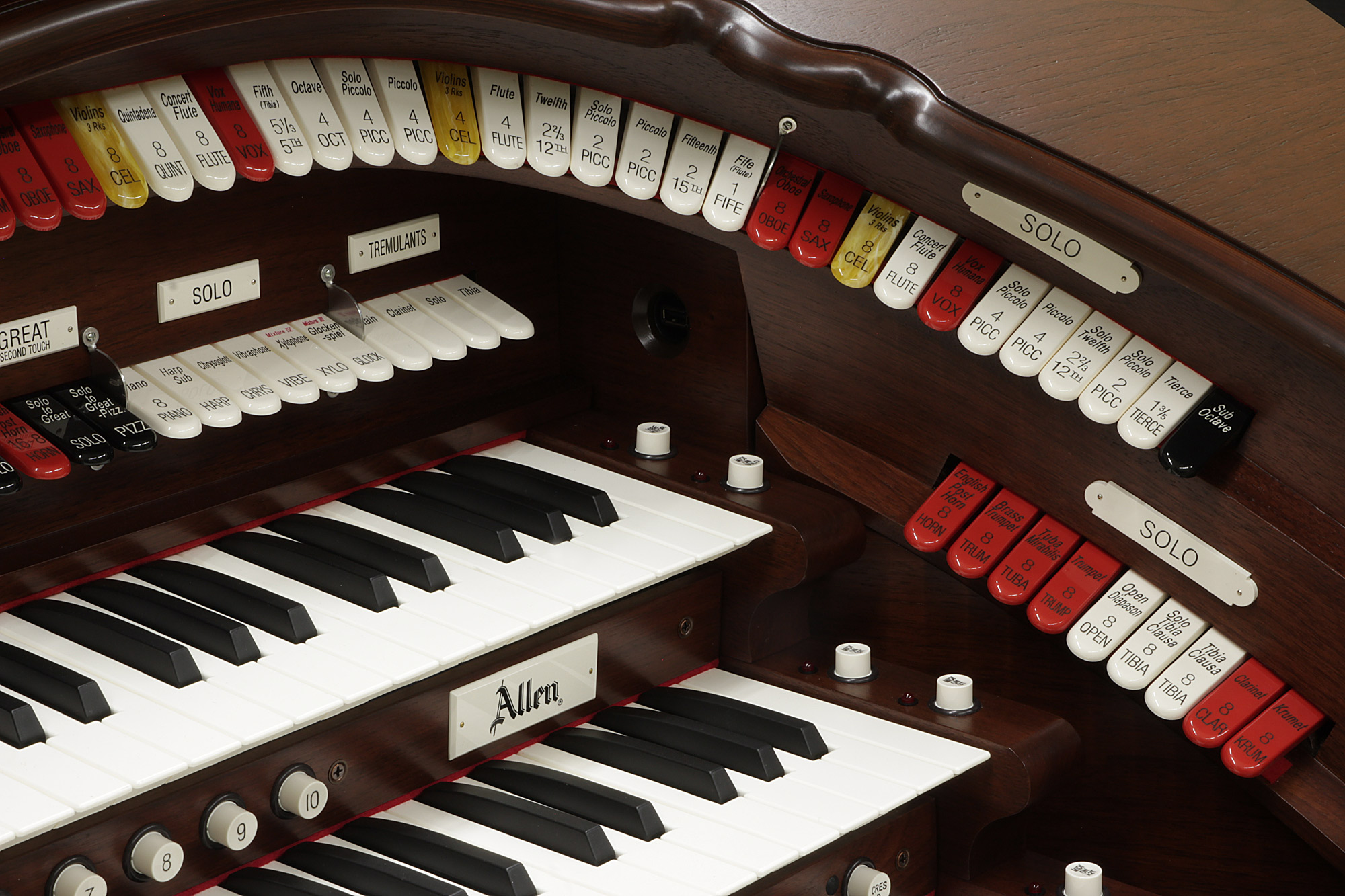

TX323 SPECIFICATIONS
Featuring Multiple Organ Stop Lists: Morton, Wurlitzer, Barton
PEDAL
32 Contra Violone
16 Ophicleide
16 Diaphone
16 Violone
16 Bourdon
8 English Post Horn
8 Trumpet
8 Open Diapason
8 Solo Tibia Clausa
8 Tibia Clausa (Pizz.)
8 Clarinet
8 Flute
16 Piano
8 Piano
Accomp to Pedal
Bass Drum
Tap Cymbal (Brush)
GeniSys Voice 1
GeniSys Voice 2
ACCOMP
8 English Post Horn
8 Brass Trumpet
8 Tuba Mirabilis
8 Trumpet
8 Open Diapason
8 Tibia Clausa (m)
8 Clarinet
8 Violins 3 rks
8 Oboe Horn
8 Quintadena
8 Concert Flute
8 Vox Humana
4 Octave
4 Piccolo (m)
4 Concert Flute
Acc Violins>Dolces
Octave
8 Piano
Harp Sub
Harp
Chrysoglott
Snare Drum
Tom-Tom (Castanets)
Hi-Hat (Tambourine)
Tap Cymbal (Brush)
Alternate Traps
Traps to 2nd T
GeniSys Voice 3
GeniSys Voice 4
GREAT
16 English Post Horn
16 Brass Trumpet (ten c)
16 Bombarde
16 Diaphone
16 Solo Tibia Clausa (ten c)
16 Tibia Clausa (ten c)
16 Clarinet
16 Krumet (ten c)
16 Orchestral Oboe (ten c)
16 Saxophone (ten c)
16 Violins 3 rks (ten c)
16 Vox Humana (ten c)
8 English Post Horn
8 Brass Trumpet
8 Tuba Mirabilis
8 Trumpet
8 Open Diapason
8 Solo Tibia Clausa
8 Tibia Clausa
8 Clarinet
8 Krumet
8 Orchestral Oboe
8 Saxophone
8 Violins 3 rks
8 Quintadena
8 Concert Flute
8 Vox Humana
5-1/3 Fifth (Tibia)
4 Octave
4 Solo Piccolo
4 Piccolo
4 Violins 3 rks
4 Flute
2-2/3 Twelfth
2 Solo Piccolo
2 Piccolo
2 Fifteenth
1 Fife (Flute)
Xylophone
Glockenspiel
Sub Octave
Octave
Solo Sub Great
Solo to Great
GeniSys Voice 5
GeniSys Voice 6
SOLO
8 English Post Horn
8 Brass Trumpet
8 Tuba Mirabilis
8 Trumpet
8 Open Diapason
8 Solo Tibia Clausa
8 Tibia Clausa
8 Clarinet
8 Krumet
8 Orchestral Oboe
8 Saxophone
8 Violins 3 rks
8 Concert Flute
8 Vox Humana
4 Solo Piccolo
4 Piccolo
2-2/3 Twelfth
2 Solo Piccolo
1-3/5 Tierce
Sub Octave
8 Piano
Harp Sub
Chrysoglott
Vibraphone
Xylophone
Glockenspiel
GeniSys Voice 7
GeniSys Voice 8
ACC 2nd TOUCH
8 English Post Horn
8 Brass Trumpet
8 Tuba Mirabilis
8 Trumpet
8 Solo Tibia Clausa
8 Clarinet
Great Octave Acc
Solo to Acc
Perc on 2nd
GeniSys Voice 9
GeniSys Voice 10
GREAT 2nd TOUCH
16-8 English Post Horn
Solo to Great
Solo to Great-Pizz
GeniSys Voice 11
GeniSys Voice 12
TREMULANTS
Main
Clarinet
Solo
Tibia/Vox
STOP PISTONS
Solo Violin Off
Solo Chimes
Percussion Unexpressed
Master Expression
Harp Re-it
MIDI on Pedal
Vibe Motors On
GeniSys Voices Coupler
MIDI on Solo
MIDI on Great 2nd
MIDI on Great
MIDI on Acc 2nd
MIDI on Acc
TOE PISTONS
Persian Cymbal
Crash Cymbal
Storm
Siren
Horn
Bird
Wind Chimes
Train Whistle
.. AND Classical Suite
PEDAL
Contra Violone
Posaune
Diapason
Violone
Bourdon
French Trompette
Tromba
Octave
Gedackt
Cromorne
Harmonic Flute
Choralbass 4
Mixture III
Great to Pedal
ACCOMP
French Trompette
Trompete
Tromba
Trumpet
Principal
Gedackt
Cromorne
Violas III
Oboe Horn
Quintadena
Harmonic Flute
Vox Humana
Octave
Gedackt
Harmonic Flute
Mixture IV
GREAT
French Trompette
Trompete
Tromba
Diapason
Bourdon
Gedackt
Cromorne
Krumet
Basson
English Horn
Violas III
Vox Humana
French Trompette
Trompete
Tromba
Trumpet
Principal
Bourdon
Gedackt
Cromorne
Krumet
Hautbois
English Horn
Violas III
Quintadena
Harmonic Flute
Vox Humana
Quintflöte
Octave
Bourdon
Gedackt
Violas III
Harmonic Flute
Twelfth
Piccolo
Piccolo
Fifteenth (Prin)
Fife
Mixture IV
Mixture III
SOLO
French Trompette
Trompete
Tromba
Trumpet
Principal
Bourdon
Gedackt
Cromorne
Krumet
Hautbois
English Horn
Violas III
Harmonic Flute
Vox Humana
Bourdon
Gedackt
Nasard
Piccolo
Tierce
Mixture IV
Mixture III
ACC 2nd TOUCH
8 English Post Horn
8 Brass Trumpet
8 Tuba Mirabilis
8 Trumpet
8 Solo Tibia Clausa
8 Clarinet
Great Octave Acc
Solo to Acc
Perc on 2nd
GREAT 2nd TOUCH
French Trompette
THE ANTIDOTE FOR ACOUSTIC COMPROMISE
Dry, crisp acoustics designed to make spoken words easy to understand can make music sound brittle and uninteresting. Organ sound, especially, comes alive in more resonant spaces. Most organs include obsolete digital reverb, to artificially imitate acoustics. But not Allen. Allen's revolutionary Acoustic Portrait™ produces the "real thing"!
Based on a remarkable technology called convolution, Acoustic Portrait realistically recreates the "sonic fingerprint" of actual rooms ranging from small churches to large, famous cathedrals. Don't let the acoustics of your room stand between you and beautiful music-making. Acoustic Portrait will add the dimension you've been missing.
The World's Finest Sampled Reverb!
Voice changes made easily!

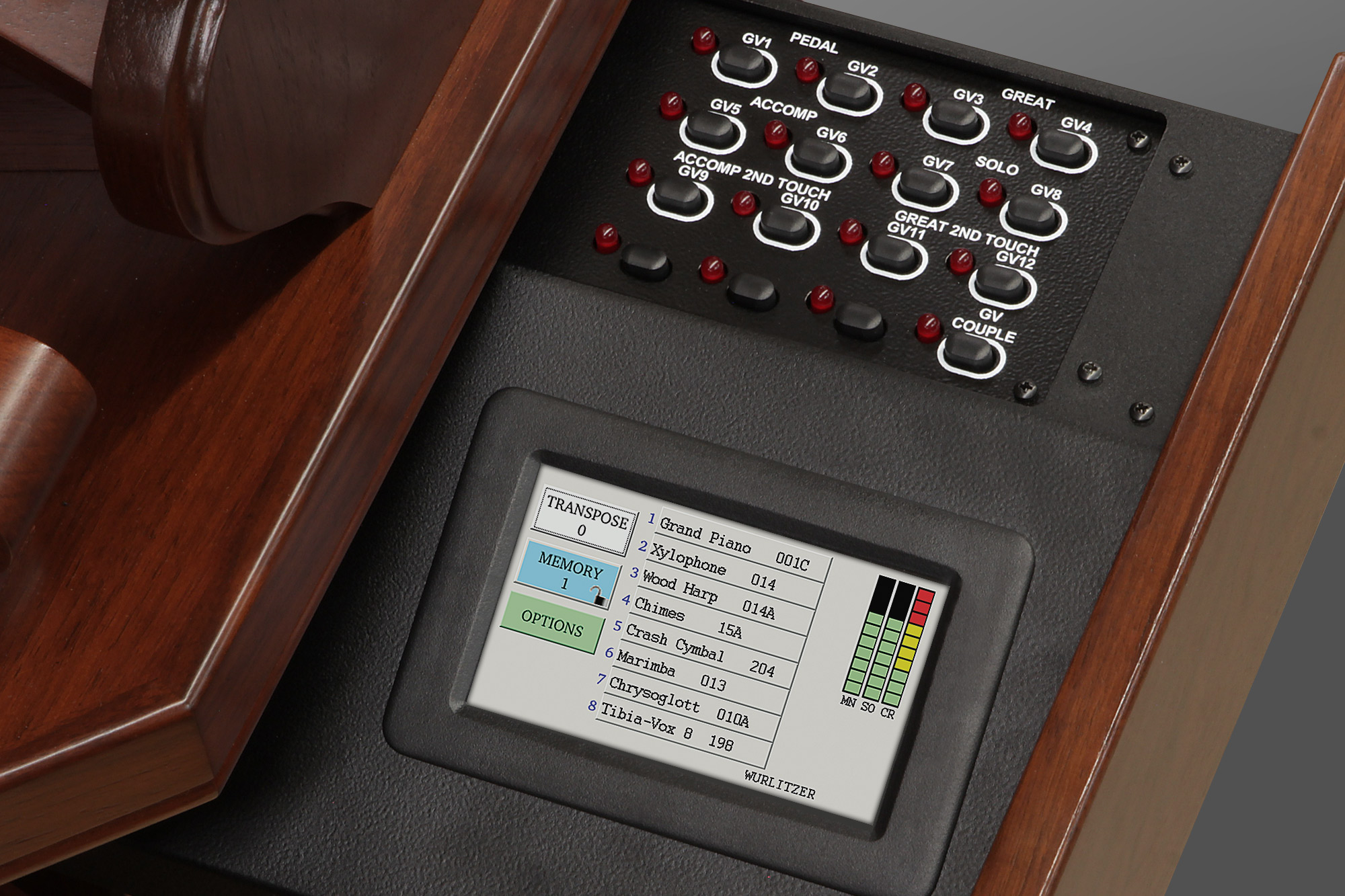

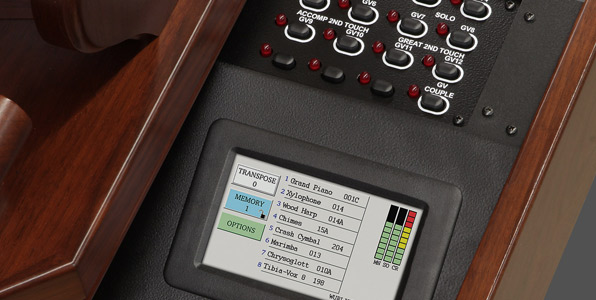

GENISYS Voices™ Provide the tonal diversity of a comprehensive stop list to even the most modest instruments. GENISYS Voices set a new standard for organist-friendly operation and include sounds that enhance every style of worship and organ literature!
