SPEAKER CABINETS

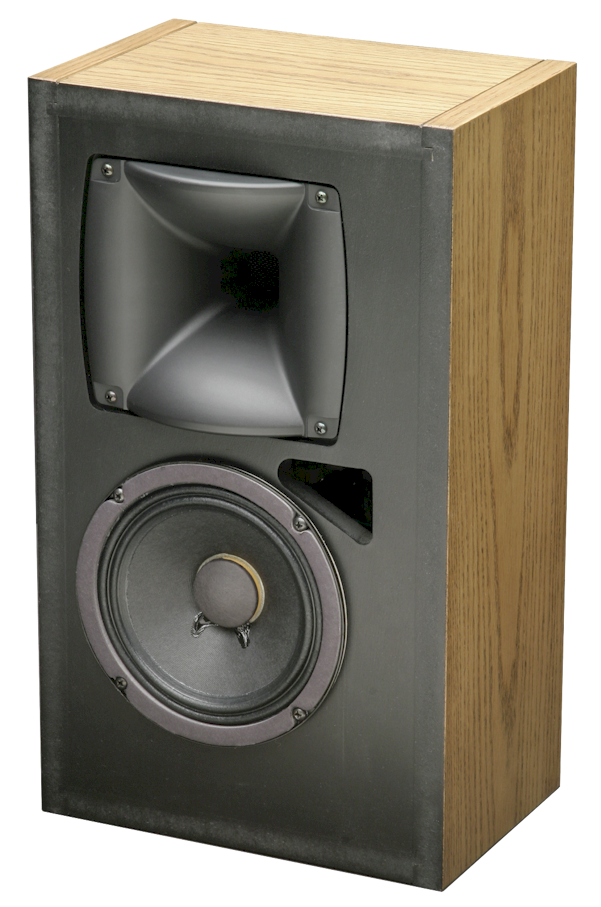

HR-50

  • 1" Ferro-Fluid titanium diaphragm compression driver with matched bi-radial horn
  • Passive two-way second order crossover network
  • 6" woofer
  • Frequency response 100 Hz to 20 kHz
  • Sensitivity 94 dB
  • Nominal Impedance: 8 ohms
  • Finished Cabinet Dimensions:
    10" (254 mm) wide
    17" (432 mm) high with glides
    7 3/4" (197 mm) deep with grill
  • Weight: 20 lbs. (9.1 kg) uncrated
HR-50

HR-100

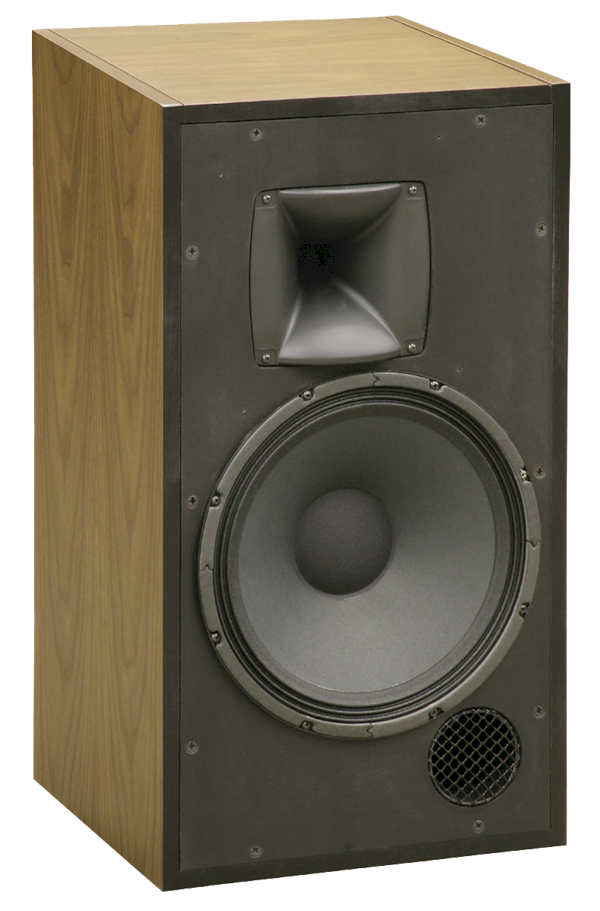

HR-100
  • 1" Ferro-Fluid titanium diaphragm compression driver with matched bi-radial horn
  • Passive two-way second order crossover network
  • 12" woofer
  • Frequency response 40 Hz to 20 kHz
  • Sensitivity 94 dB
  • Nominal Impedance: 8 ohms
  • Finished Cabinet Dimensions:
    14 1/2" (368 mm) wide
    25 5/8" (651 mm) high with glides
    10 19/32" (269 mm) deep with grill
  • Weight: 43 lbs. (19.5 kg) uncrated
  • Available finished or unfinished

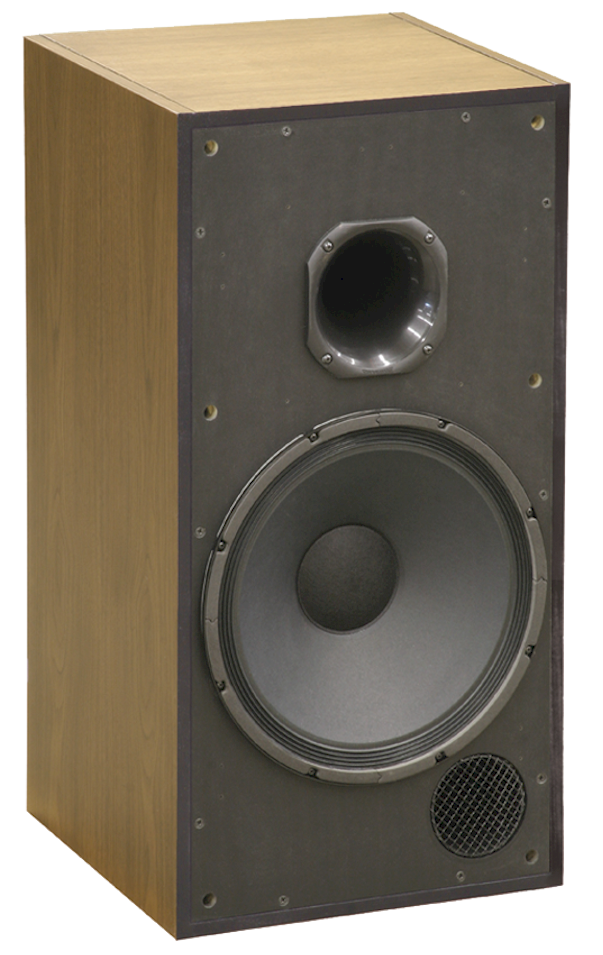

HR-200

  • 1" Ferro-Fluid titanium diaphragm compression driver with matched bi-radial horn
  • Passive two-way second order crossover network
  • 15" woofer
  • Frequency response 30 Hz to 20 kHz
  • Sensitivity 94 dB
  • Nominal Impedance: 8 ohms
  • Finished Cabinet Dimensions:
    17 3/8" (441 mm) wide
    33 1/4" (844 mm) high with glides
    19 1/8" (486 mm) deep with grill
  • Weight: 80.5 lbs. (36.5 kg) uncrated
  • Available finished or unfinished
HR-200

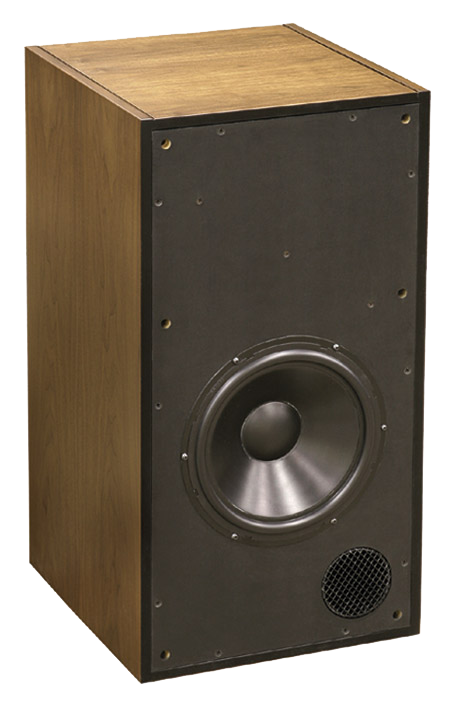

B-20 BASS CABINET

B-20
  • 12" woofer
  • Passive two-way second order crossover network
  • Frequency response 30 Hz to 200 Hz
  • Sensitivity 94 dB
  • Nominal Impedance: 8 ohms
  • Dimensions (Utility Cabinet):
    17 3/8" (441 mm) wide
    33 1/4" (844 mm) high with glides
    19 1/8" (486 mm) deep with grill
  • Weight: 69 lbs. (31.3 kg) uncrated
  • Available finished or unfinished

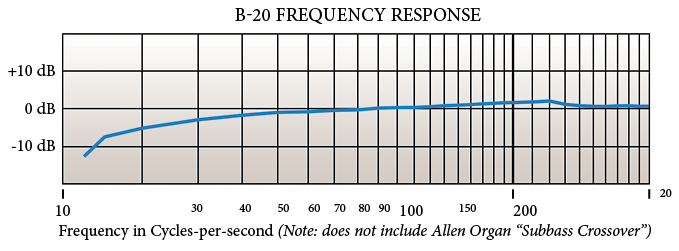

B-20 Frequency

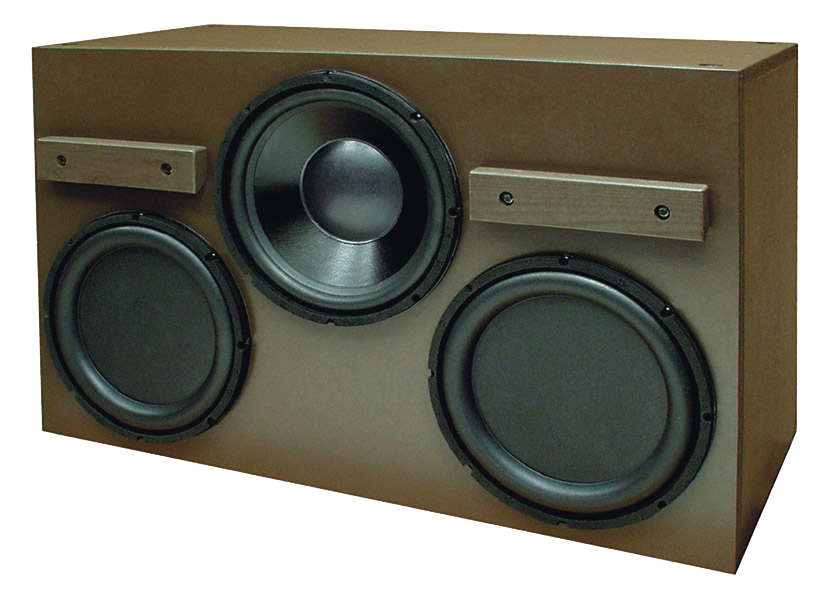

SR-1 BASS CABINET

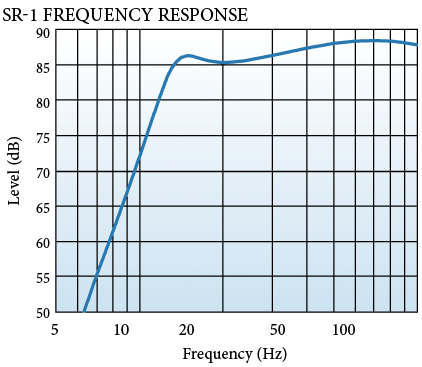

SR-1 Frequency
  • Dimensions (with glides):
    44 5/16" (1127 mm) wide
    27 5/16" (695 mm) high
    22 3/8" (569 mm) deep
  • Weight: 160 lbs. (72.4 kg) uncrated
  • SR Cabinets are paintable
SR-1

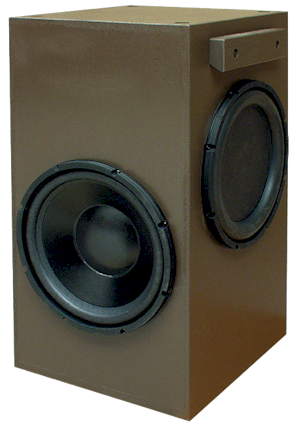

SR-5 BASS CABINET

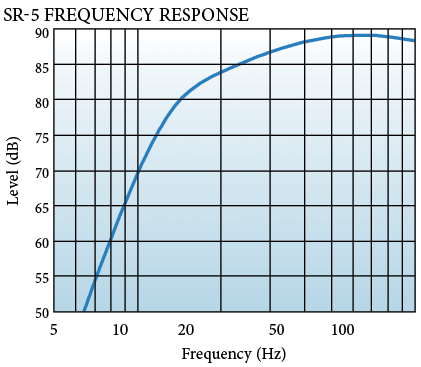

SR-5 Frequency
  • Dimensions (with glides):
    20" (508 mm) wide
    33 5/16" (848 mm) high
    19 5/8" (499 mm) deep
  • Weight: 80 lbs. (36.2 kg) uncrated
  • Two "passive" radiators (left and right sides)
  • 15" Super Low Frequency driver
  • SR Cabinets are paintable
SR-5
