Allen is the only digital church organ builder to fully finish the interior wood of the console to protect it during its many years of use.
All key electronic components are housed within a protective metal chassis to guard against electrical shocks, another Allen exclusive.
ALLEN'S CONSTRUCTION QUALITY
Using select woods and veneers, Allen craftsmen blend modern and traditional woodworking techniques to assure precision shaping and hand-crafted console assembly. No "knock-down" quality in an Allen Organ.

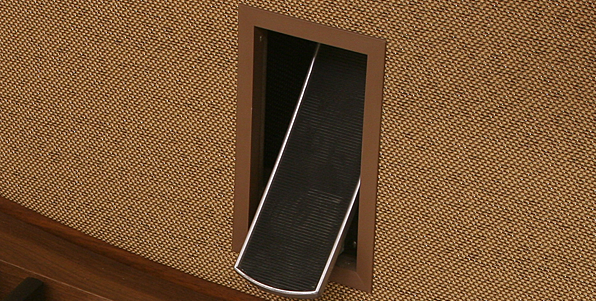

ALLEN EXPRESSION / CRESCENDO PEDALS
While plastic or wood expression pedals can be found on some church organs, they do not meet Allen's demanding quality standards. Cast Aluminum expression shoes are built to last a lifetime!
EXPRESSION SHOE CAGE
Sturdy metal construction fully protects the organ's interior against damage from pests entering the organ console. Just another example of Allen's dedication to quality and our customers.
ALLEN ORGAN - RELIABLE SERVICE
Allen dependability is legendary. Backed by a ten-year parts warranty, Allen Organs require no periodic maintenance or tuning. In the unlikely event that an Allen requires service, it is performed by factory-trained Allen technicians. Allen representatives keep a supply of spare parts on hand for service needs. The modular design found in our organs, ensures quick and easy service, without the necessity for on-site soldering.
The relationship between Allen and its customers doesn't end when an instrument is installed. Allen's commitment to customer satisfaction continues long after an organ is installed.
DELUXE CONTROLS

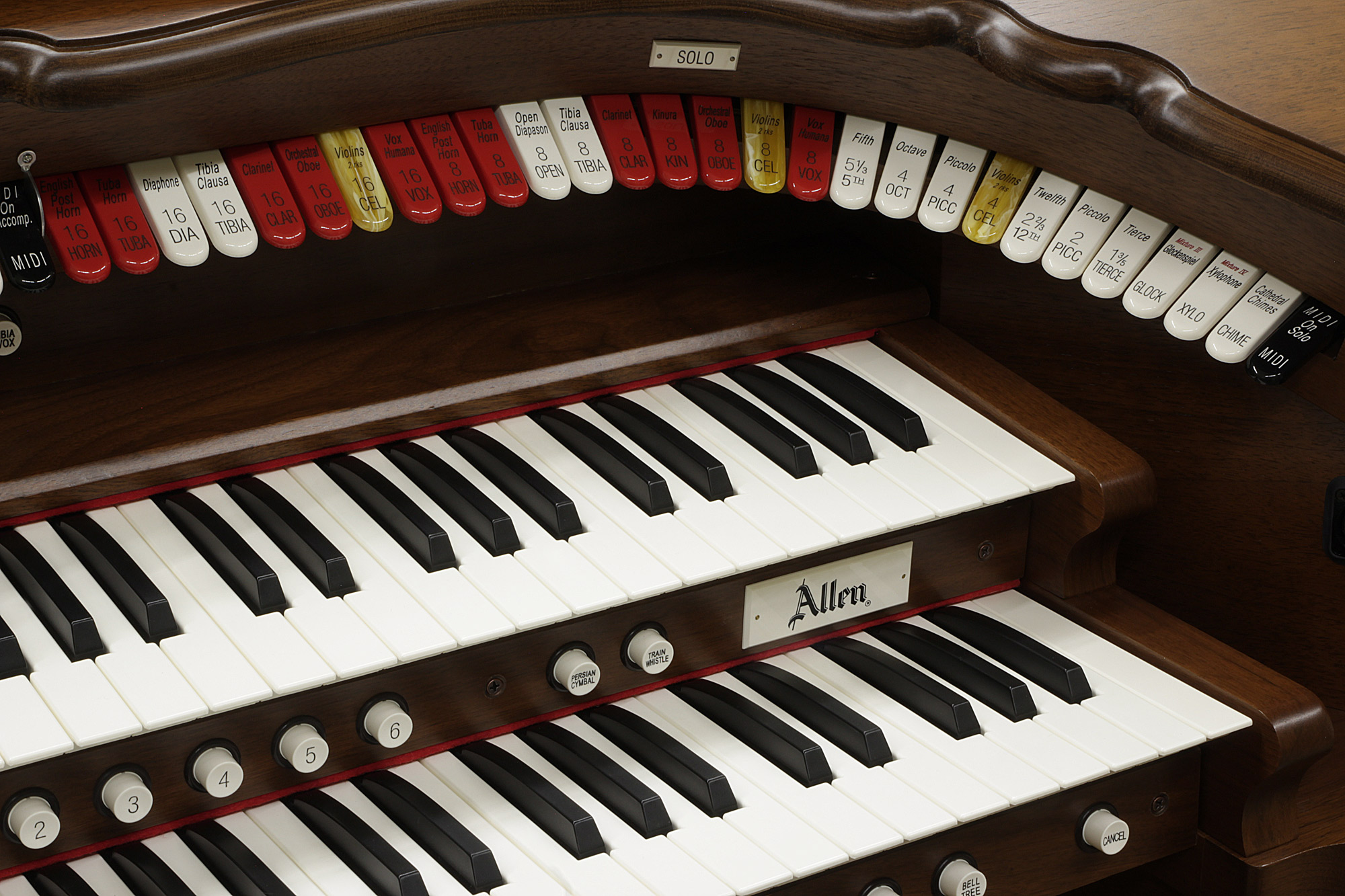

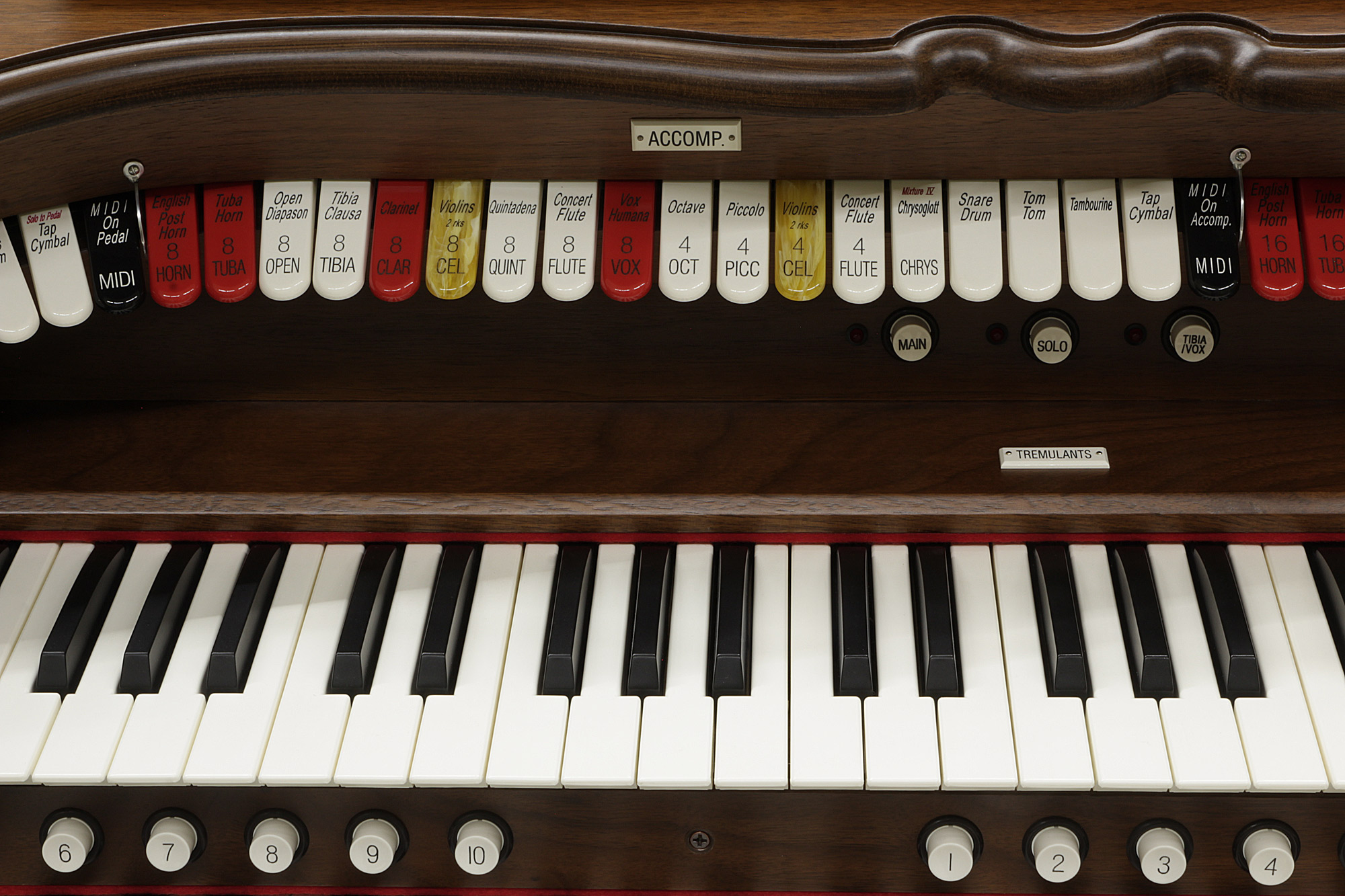

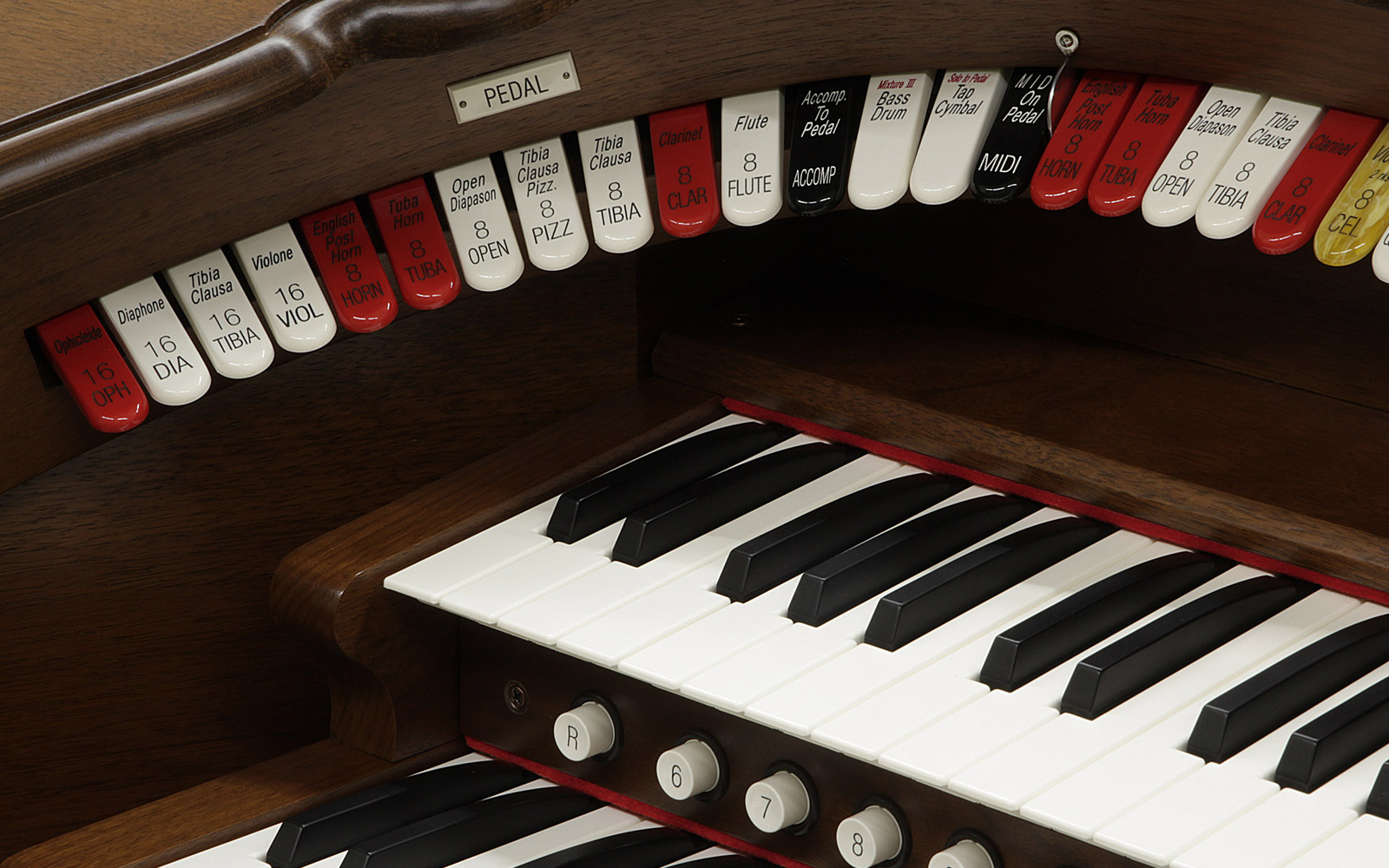

Allen designs and builds its own Theatre organ stop controls to provide the highest quality at affordable prices. From state-of-the-art Lumitech™ Stop Tabs with advanced LED's, to moving Stop Tabs, every control choice reflects Allen's uncompromising standards that ensure years of maintenance-free service.

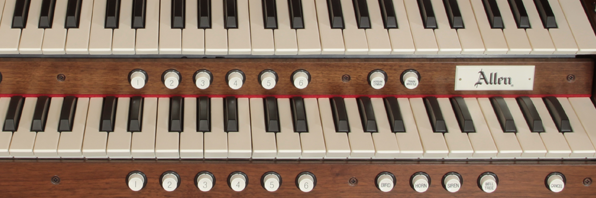

PREMIUM KEYBOARDS
The exclusive Allen keyboard is designed to allow the musician to feel the music. These keyboards are built with a level of quality that is the envy of the
industry. Each key stick is constructed of wood, felted pivot points and can be individually adjusted to keep them consistent over the long-haul.
The Allen keyboard utilizes sealed contacts and wood keysticks to provide the ultimate in touch and control. The level of quality and adjustability of Allen keyboards makes them the envy of the industry and the choice of discerning musicians.
The key contact, while unseen, is an important part of any church organ. If one fails during a performance, the entire musical program can be compromised. Allen has introduced a maintenance-free system in which a sealed reed switch is engaged by magnet. Neither dust nor the environment will compromise your music program with an Allen Organ.

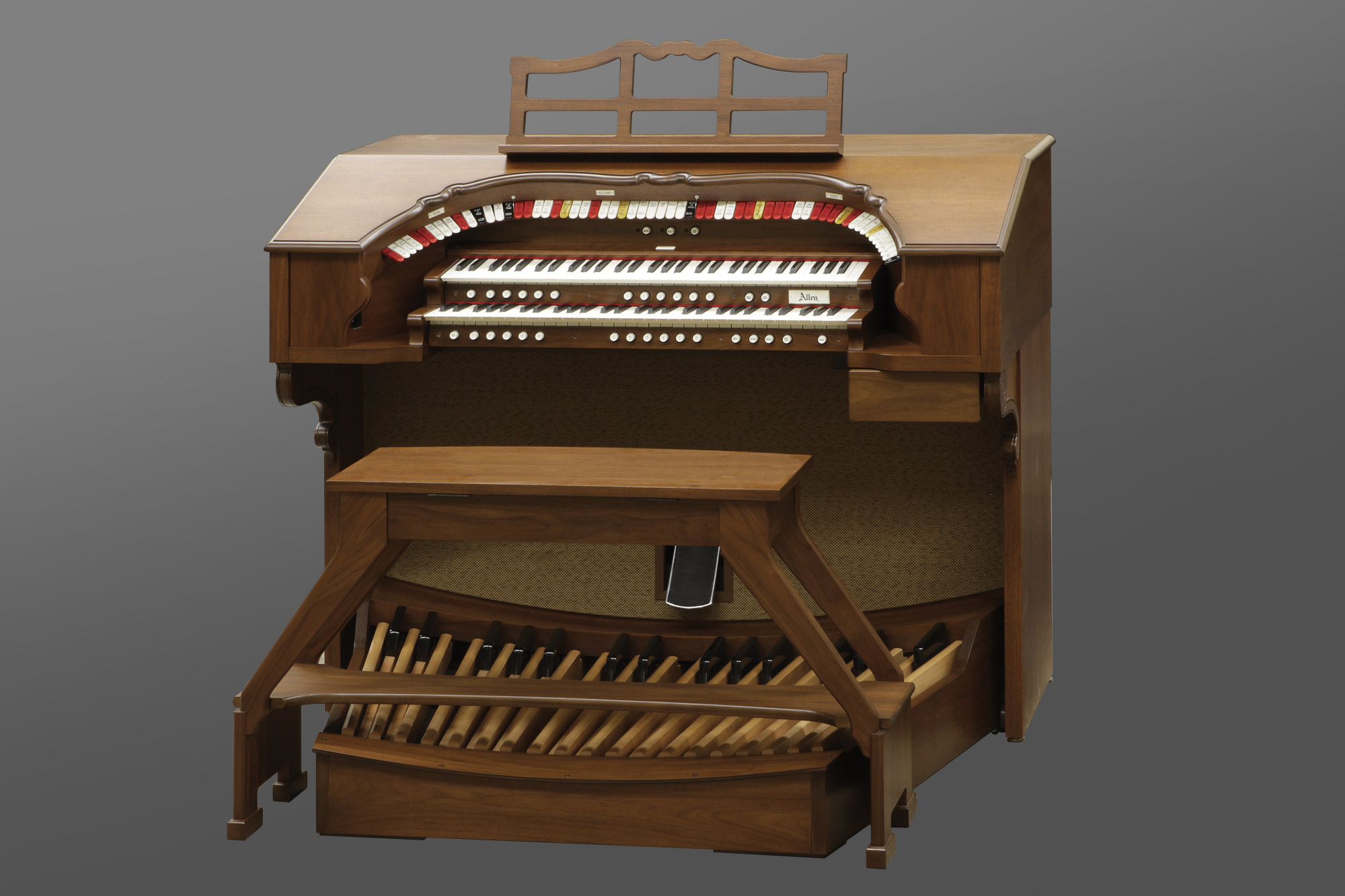

TX217 SPECIFICATIONS
Featuring Multiple Organ Stop Lists: Morton, Wurlitzer, Barton
PEDAL
16 Ophicleide
16 Diaphone
16 Tibia Clausa
16 Violone
8 English Post Horn
8 Tuba Horn
8 Open Diapason
8 Tibia Clausa (Pizz.)
8 Tibia Clausa
8 Clarinet
8 Flute
Accompaniment To Pedal
MIDI On Pedal
GeniSys Voice 1
GeniSys Voice 2
Bass Drum
Tap Cymbal
ACCOMPANIMENT
8 English Post Horn
8 Tuba Horn
8 Open Diapason
8 Tibia Clausa
8 Clarinet
8 Violins 2 Rks
8 Quintadena
8 Concert Flute
8 Vox Humana
4 Octave
4 Piccolo
4 Violins 2 Rks
4 Concert Flute
Chrysoglott
Snare Drum
Tom-Tom
Tambourine
Tap Cymbal
GeniSys Voice 3
GeniSys Voice 4
MIDI On Accompaniment
SOLO
16 English Post Horn
16 Tuba Horn
16 Diaphone
16 Tibia Clausa
16 Clarinet
16 Orchestral Oboe
16 Violins 2 Rks
16 Vox Humana
8 English Post Horn
8 Tuba Horn
8 Open Diapason
8 Tibia Clausa
8 Clarinet
8 Kinura
8 Orchestral Oboe
8 Violins 2 Rks
8 Vox Humana
5 1/3 Fifth (Tibia)
4 Octave
4 Piccolo
4 Violins 2 Rks
2 2/3 Twelfth
2 Piccolo
1 3/5 Tierce
Glockenspiel
Xylophone
Cathedral Chimes
GeniSys Voice 5
GeniSys Voice 6
MIDI On Solo
TREMULANTS
Main
Solo
Tibia/Vox
EFFECTS
Persian Cymbal
Siren
Train Whistle
Horn
Bell Tree
Bird
.. AND Classical Suite
PEDAL
16 Posaune
16 Diapason
16 Gedackt
16 Violone
8 French Trumpette
8 Tuba Horn
8 Octave
8 Tibia Clausa (Pizz.)
8 Gedackt
8 Cromorne
8 Harmonic Flute
Accompaniment To Pedal
MIDI On Pedal
GeniSys Voice 1
GeniSys Voice 2
Mixture III
Solo to Pedal
ACCOMPANIMENT
8 French Trompette
8 Tuba Horn
8 Principal
8 Gedackt
8 Cromorne
8 Violas II
8 Quintadena
8 Harmonic Flute
8 Vox Humana
4 Octave
4 Gedackt
4 Violas II
4 Harmonic Flute
Mixture IV
Snare Drum
Tom-Tom
Tambourine
Tap Cymbal
GeniSys Voice 3
GeniSys Voice 4
MIDI On Accompaniment
SOLO
16 French Trompette
16 Tuba Horn
16 Diapason
16 Gedackt
16 Cromorne
16 Basson
16 Violas II
16 Vox Humana
8 French Trompette
8 Tuba Horn
8 Principal
8 Gedackt
8 Cromorne
8 Kinura
8 Hautbois
8 Violas II
8 Vox Humana
5 1/3 Quintflöte
4 Octave
4 Gedackt
4 Violas II
2 2/3 Twelfth
2 Piccolo
1 3/5 Tierce
Mixture III
Mixture IV
Cathedral Chimes
GeniSys Voice 5
GeniSys Voice 6
MIDI On Solo
TREMULANTS
Main
Solo
Tibia/Vox
EFFECTS
Persian Cymbal
Siren
Train Whistle
Horn
Bell Tree
Bird
Dry, crisp acoustics designed to make spoken words easy to understand can make music sound brittle and uninteresting. Organ sound, especially, comes alive in more resonant spaces. Most organs include obsolete digital reverb, to artificially imitate acoustics. But not Allen. Allen's revolutionary Acoustic Portrait™ produces the "real thing"!
Based on a remarkable technology called convolution, Acoustic Portrait realistically recreates the "sonic fingerprint" of actual rooms ranging from small churches to large, famous cathedrals. Don't let the acoustics of your room stand between you and beautiful music-making. Acoustic Portrait will add the dimension you've been missing.
The World's Finest Sampled Reverb!
Voice changes made easily!

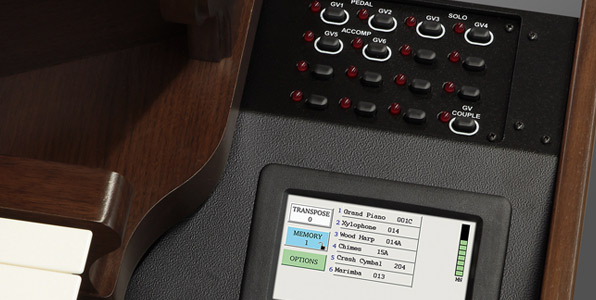

GENISYS Voices™ Provide the tonal diversity of a comprehensive stop list to even the most modest instruments. GENISYS Voices set a new standard for organist-friendly operation and include sounds that enhance every style of worship and organ literature!
HD Sound
2 Dedicated GENISYS Voice Stops per Organ Division
Over 250 different voices - organ stops, Grand Pianos, orchestral, keyboard and percussion voices
Adjustable volume and tuning per voice
Voice assignments remain until changed by organist
