99 Stops / Includes GENISYS™ Voices

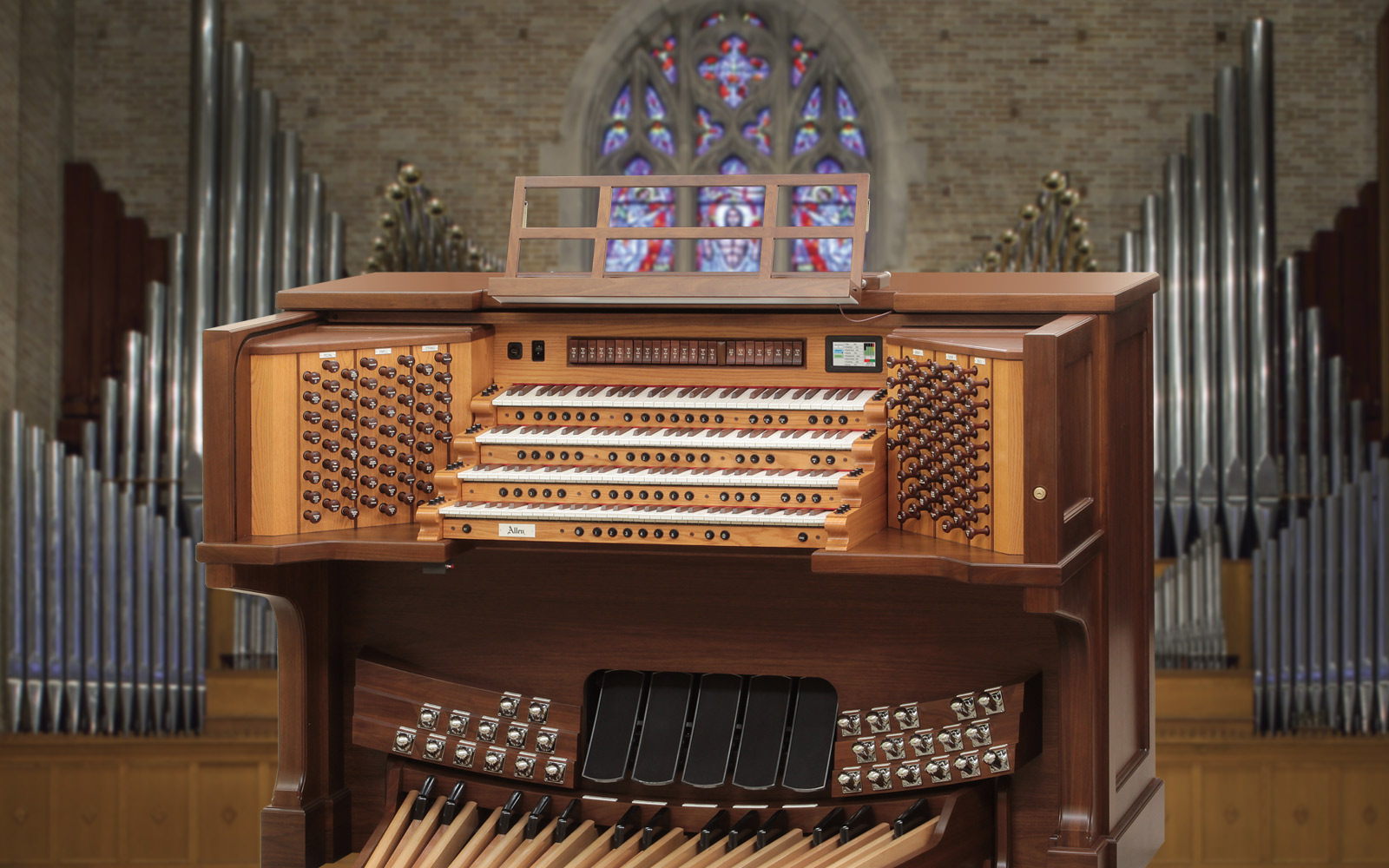

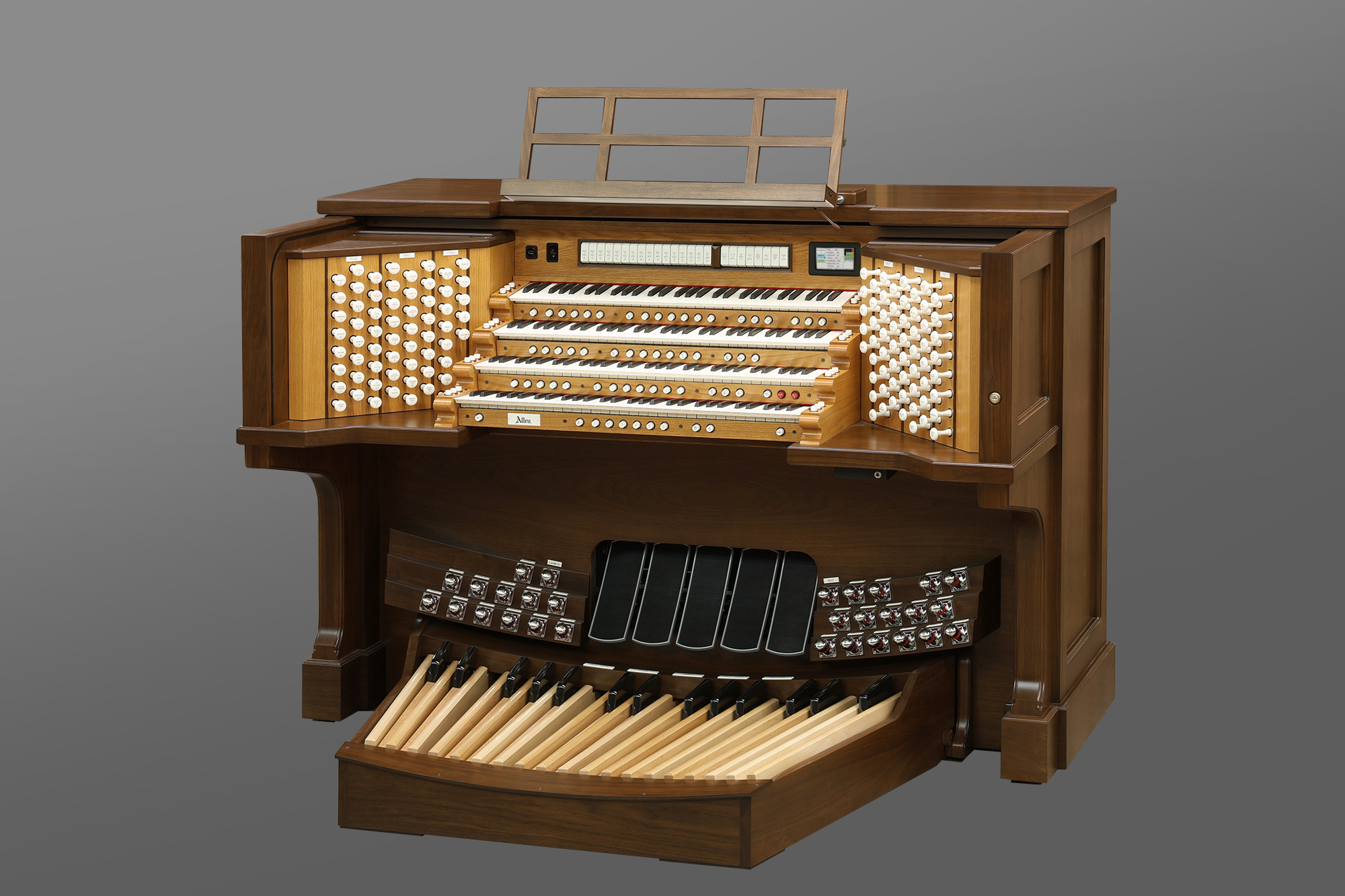

ALLEN GX-470 shown with multiple options, can be customized to suit your taste!
ALLEN GX-470 is available in many configurations. Shown with walnut sharps, walnut divisional strips, walnut drawknob stems, "S-style" keycheeks, GeniSys Voices, reeds engraved in red, and red felt above the manuals.
ALLEN GX-470 is available in many configurations. Shown with walnut sharps and red felt above the manuals.
REALISTIC PIPE ORGAN SOUND
GENISYS Organs with APEX TECHNOLOGY are the culmination of a multiyear engineering project that brings together advanced tone generation technology, along with massive processing power and memory storage: Resulting in the pinnacle of digital organ sound.
Housed in traditional consoles, APEX's floating-point technology offers 65 times greater resolution than fixed point systems. With 250 times the memory of previous organs, along with premium 32-bit DACs, APEX reproduces even the smallest detail of organ pipe sound. Multiple 64-bit quad core processors and gigabit ethernet control this amazing technology.
HEARING IS BELIEVING
GENISYS Organs with APEX Technology sing with a clarity and transparency of the finest pipe organs, but also include flexibility beyond the confines of traditional sounds.
GENISYS Organs with APEX Technology take advantage of Allen's new and updated samples from renowned pipe organs from around the world.
Allen's newest Aeolian-Skinner samples solidifies its American heritage in both sound and build quality.
ALLEN'S CONSTRUCTION QUALITY
Using select woods and veneers, Allen craftsmen blend modern and traditional woodworking techniques to assure precision shaping and hand-crafted console assembly. No "knock-down" quality in an Allen Organ.
OUR ORGAN INTERIOR
Allen is the only digital church organ builder to fully finish the interior wood of the console to protect it during its many years of use.
All key electronic components are housed within a protective metal chassis to guard against electrical shocks, another Allen exclusive.

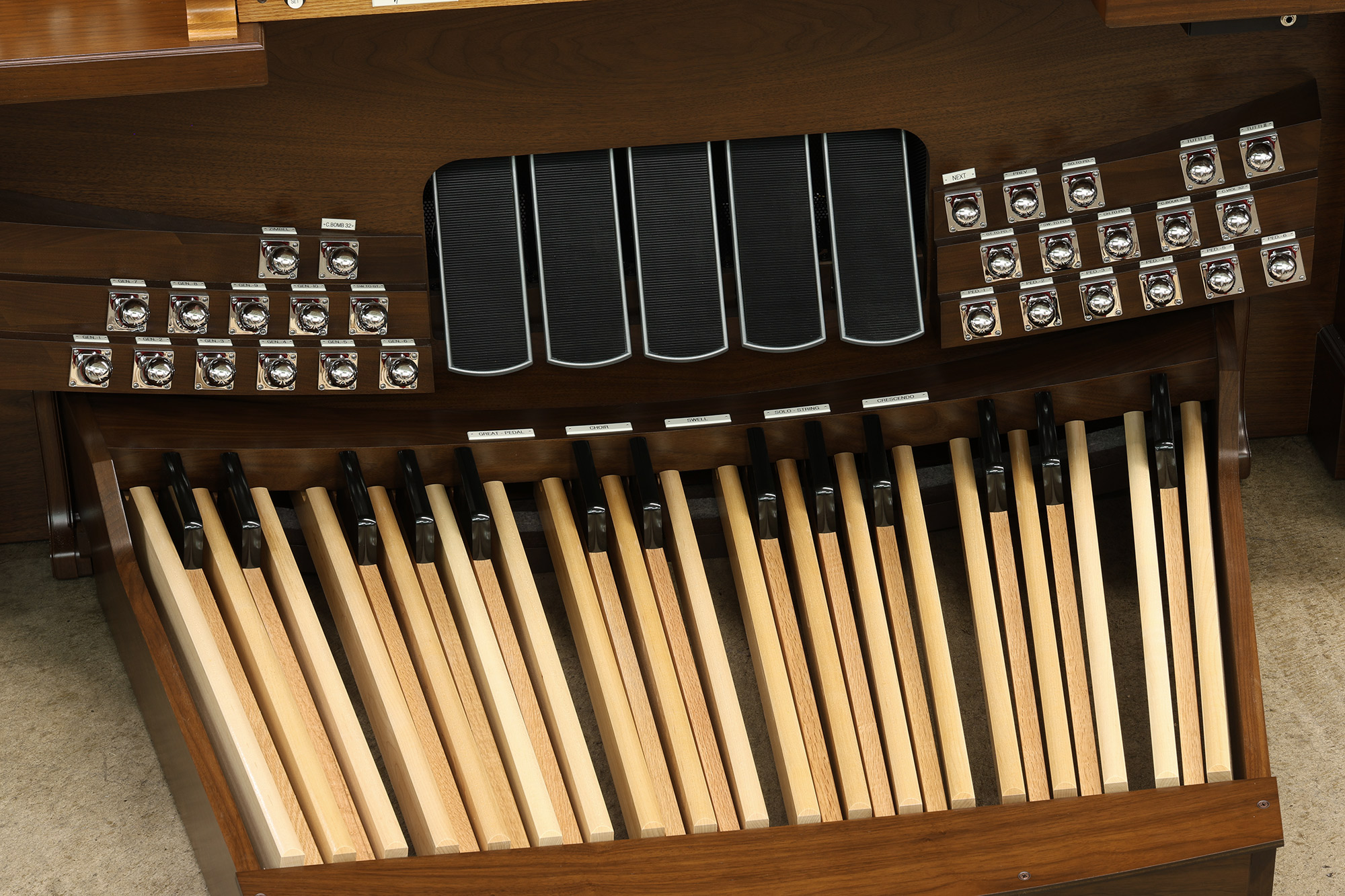

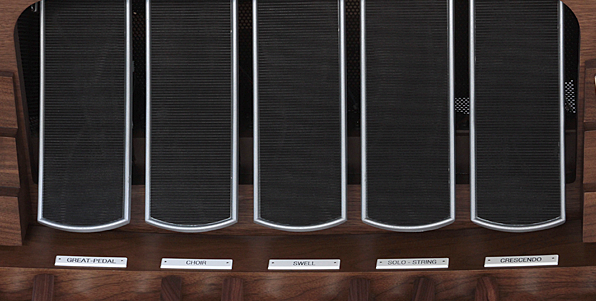

ALLEN EXPRESSION / CRESCENDO PEDALS
While plastic or wood expression pedals can be found on some church organs, they do not meet Allen's demanding quality standards. Cast Aluminum expression shoes are built to last a lifetime!
EXPRESSION SHOE CAGE
Sturdy metal construction fully protects the organ's interior against damage from pests entering the organ console. Just another example of Allen's dedication to quality and our customers.
ALLEN ORGAN - RELIABLE SERVICE
Allen dependability is legendary. Backed by a ten-year parts warranty, Allen Organs require no periodic maintenance or tuning. In the unlikely event that an Allen requires service, it is performed by factory-trained Allen technicians. Allen representatives keep a supply of spare parts on hand for service needs. The modular design found in our organs, ensures quick and easy service, without the necessity for on-site soldering.
CUSTOMER SUPPORT
The relationship between Allen and its customers doesn't end when an instrument is installed. Allen's commitment to customer satisfaction continues long after an organ is installed.
The GX-470 can be customized to suit your personal and church organ requirements. Just ask!

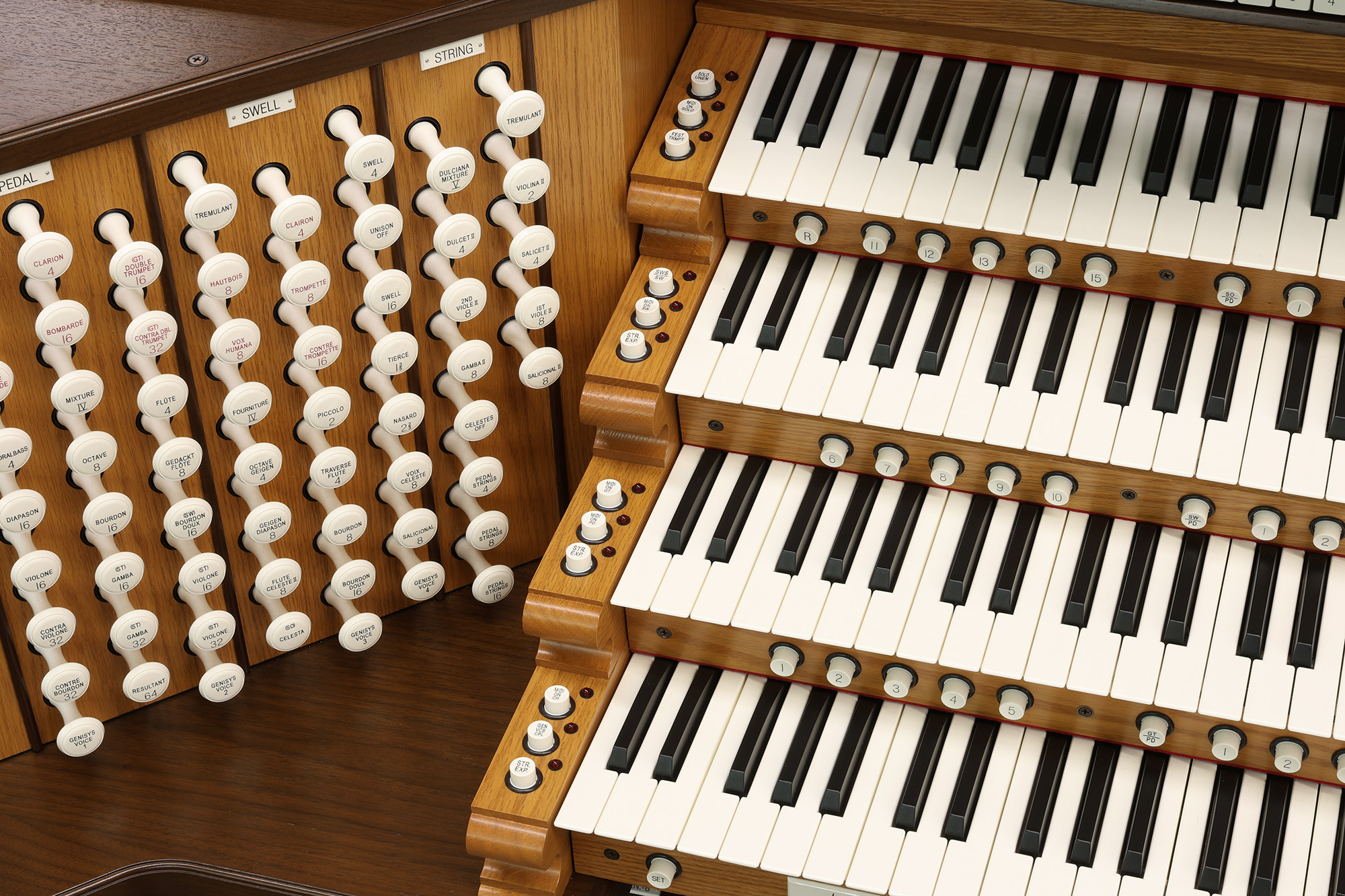

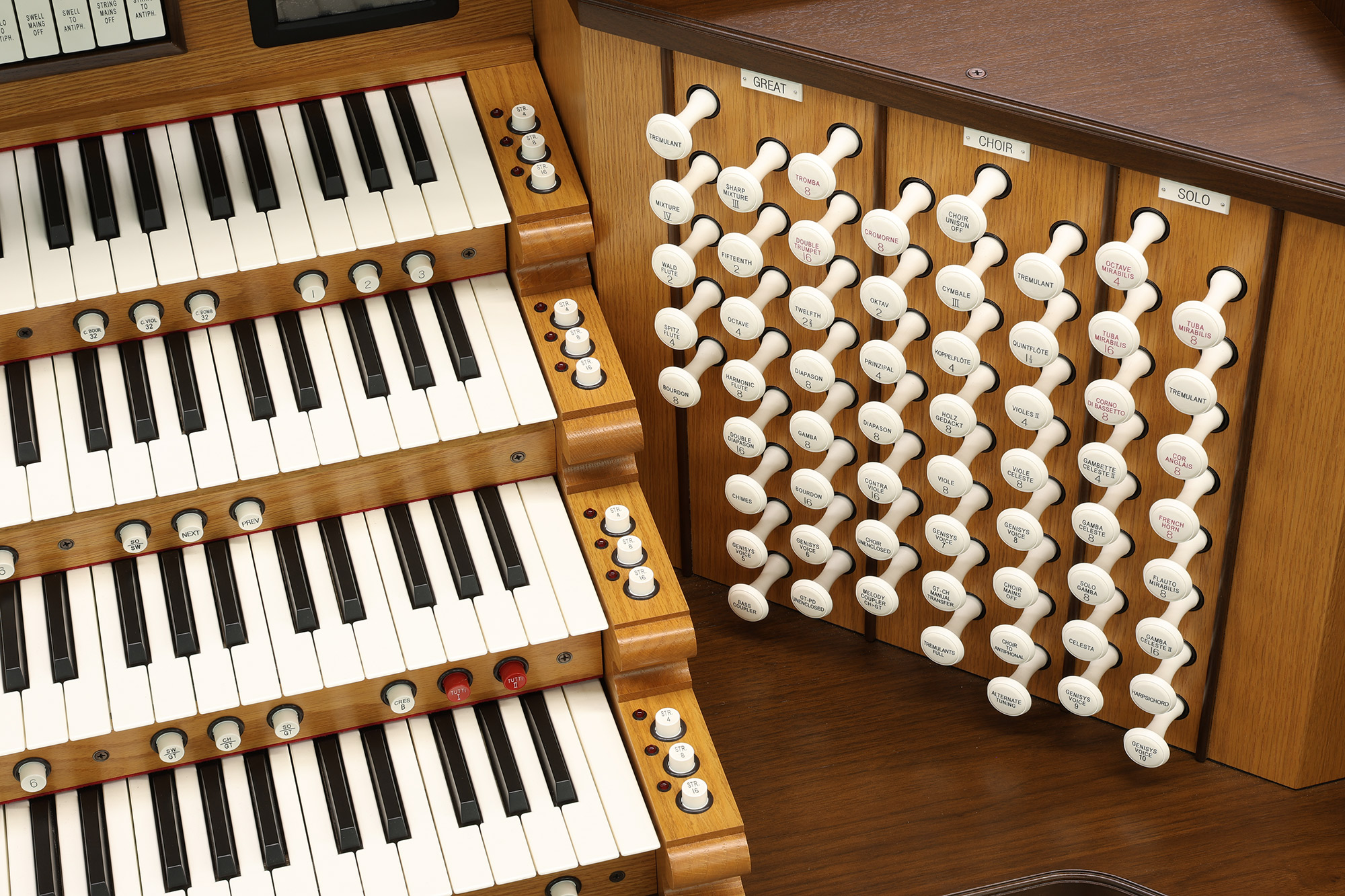

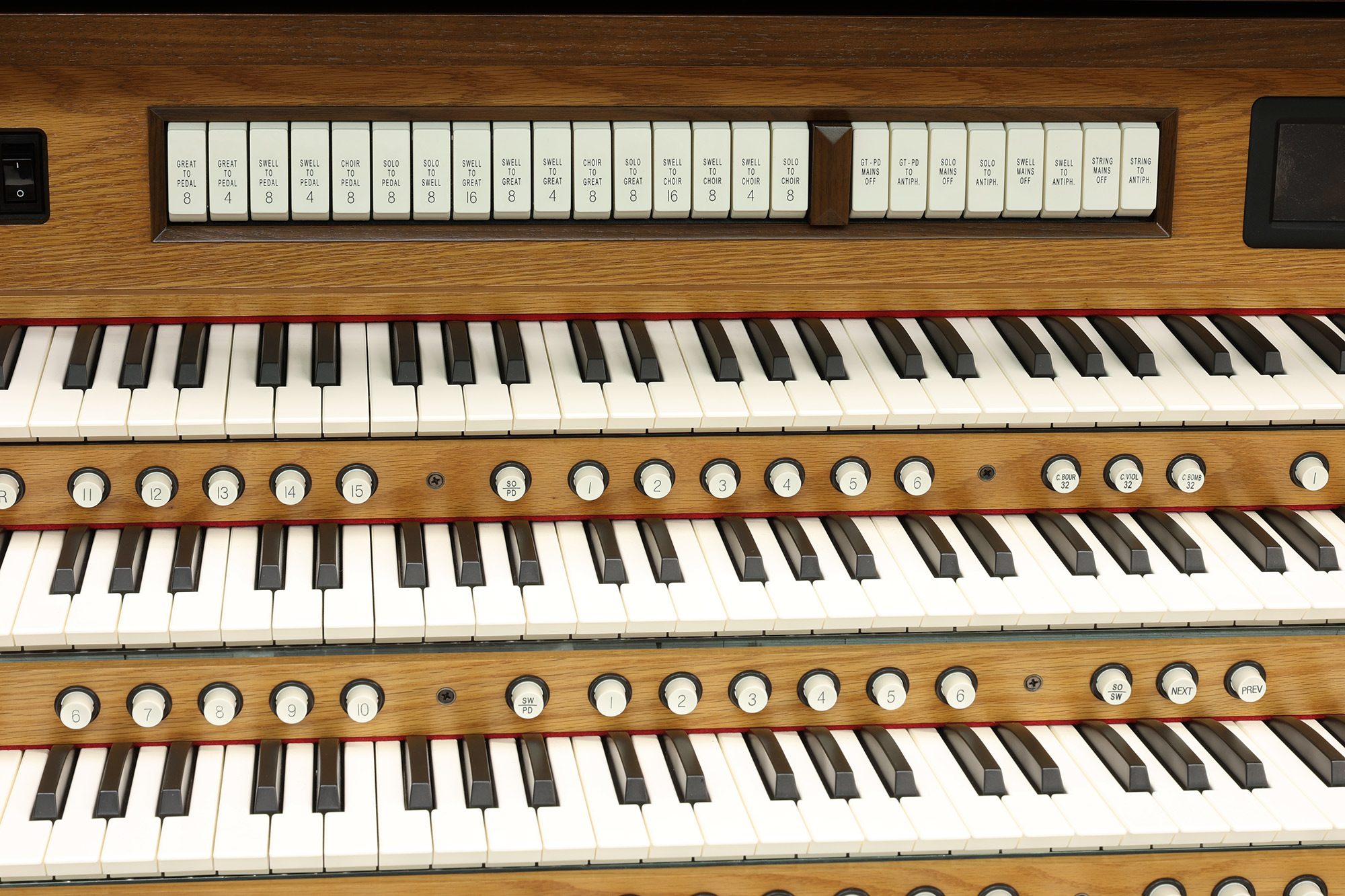

DELUXE CONTROLS
Allen designs and builds its own controls to provide the highest quality at affordable prices. From state-of-the-art Lumitech™ stops with advanced LED's to moving drawknobs, every control choice reflects Allen's uncompromising standards that ensure years of maintenance-free service.

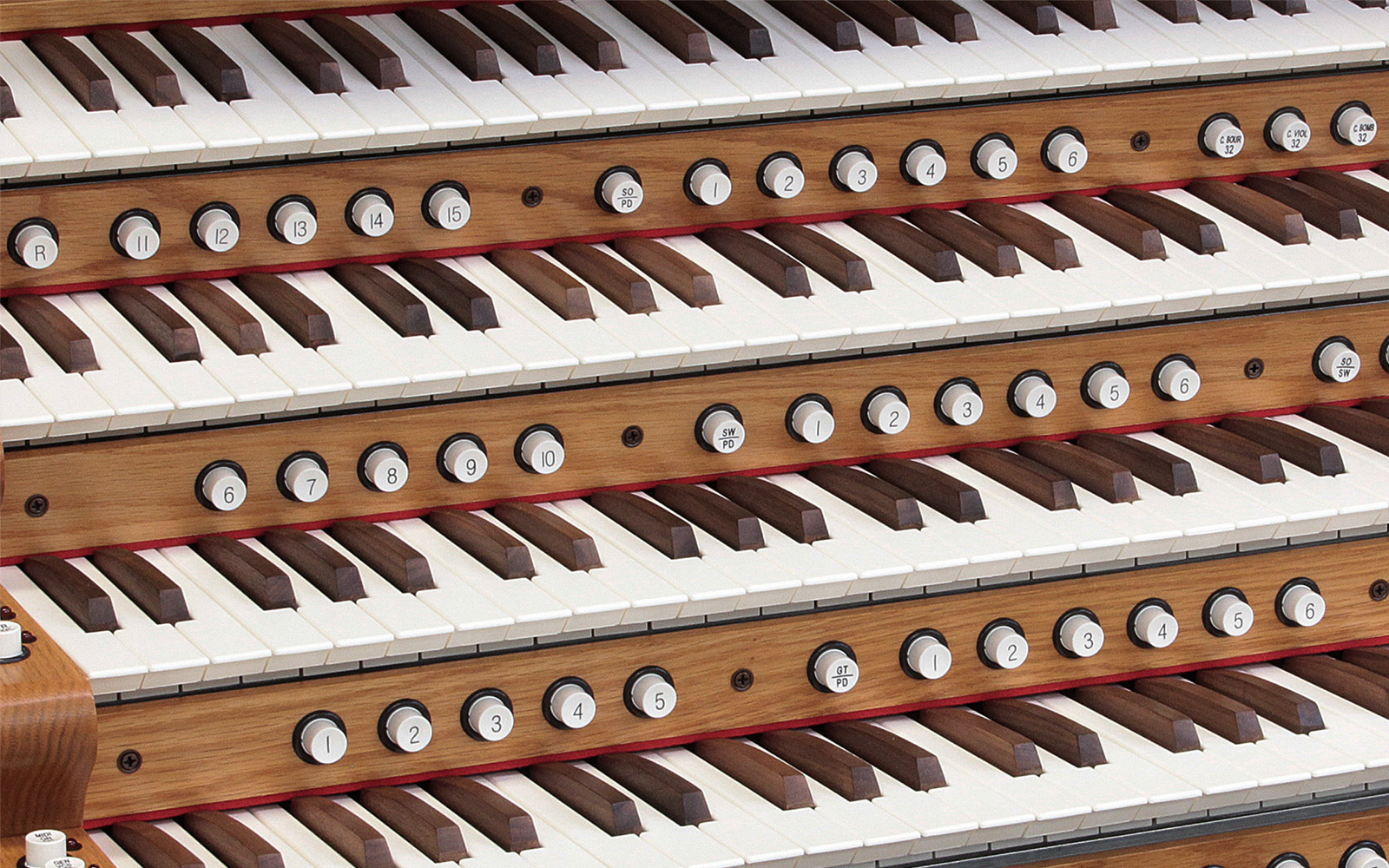

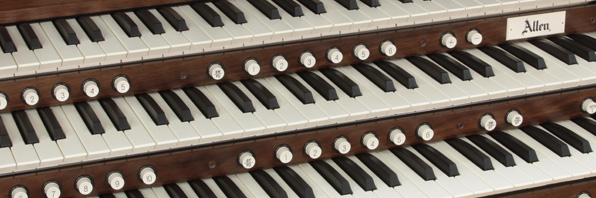

PREMIUM KEYBOARDS
The exclusive Allen keyboard is designed to allow the musician to feel the music. These keyboards are built with a level of quality that is the envy of the
industry. Each key stick is constructed of wood, felted pivot points and can be individually adjusted to keep them consistent over the long-haul.
ALLEN KEYBOARDS
PLAY VIDEO
The Allen keyboard utilizes sealed contacts and wood keysticks to provide the ultimate in touch and control. The level of quality and adjustability of Allen keyboards makes them the envy of the industry and the choice of discerning musicians.
The key contact, while unseen, is an important part of any church organ. If one fails during a performance, the entire musical program can be compromised. Allen has introduced a maintenance-free system in which a sealed reed switch is engaged by magnet. Neither dust nor the environment will compromise your music program with an Allen Organ.
GX-470 STOP LIST
Standard stop lists: Classic Allen, English, Cavaillé-Coll, Schlicker, Arp Schnitger, Aeolian-Skinner
PEDAL
64 RESULTANT
32 CONTRE BOURDON
32 CONTRA VIOLONE
32 GAMBA (ST)
32 VIOLONE (ST)
16 DIAPASON
16 BOURDON
16 BOURDON DOUX (SW)
16 VIOLONE
16 GAMBA (ST)
16 VIOLONE (ST)
8 OCTAVE
8 GEDACKT FLÖTE
4 CHORALBASS
4 FLÛTE
MIXTURE IV
32 CONTRE BOMBARDE
32 CONTRA DBL. TRUMPET (GT)
16 BOMBARDE
16 DOUBLE TRUMPET (GT)
8 TROMPETTE
4 CLARION
GENISYS VOICE 1
GENISYS VOICE 2
SWELL
16 BOURDON DOUX
8 GEIGEN DIAPASON
8 BOURDON
8 FLUTE CELESTE II
8 SALICIONAL
8 VOIX CELESTE
4 OCTAVE GEIGEN
4 TRAVERSE FLUTE
2-2/3 NASARD
2 PICCOLO
1-3/5 TIERCE
FOURNITURE IV
16 CONTRE TROMPETTE
8 TROMPETTE
8 HAUTBOIS
8 VOX HUMANA
4 CLAIRON
CELESTA (SO)
TREMULANT
16 SWELL
UNISON OFF
4 SWELL
GENISYS VOICE 3
GENISYS VOICE 4
STRING
8 1ST VIOLE II
8 2ND VIOLE II
8 GAMBA II
8 SALICIONAL II
4 DULCET II
4 SALICET II
2 VIOLINA II
DULCIANA MIXTURE V
TREMULANT
CELESTES OFF
16 PEDAL STRINGS
8 PEDAL STRINGS
4 PEDAL STRINGS
GREAT
16 DOUBLE DIAPASON
16 BOURDON
8 DIAPASON
8 HARMONIC FLUTE
8 BOURDON
8 GAMBA
4 OCTAVE
4 SPITZ FLUTE
2-2/3 TWELFTH
2 FIFTEENTH
2 WALD FLUTE
MIXTURE IV
SHARP MIXTURE III
16 DOUBLE TRUMPET
8 TROMBA
CHIMES
TREMULANT
GENISYS VOICE 5
GENISYS VOICE 6
GT-PD UNENCLOSED
BASS COUPLER
CHOIR
16 CONTRA VIOLE
8 DIAPASON
8 HOLZ GEDACKT
8 VIOLE
8 VIOLE CELESTE
4 PRINZIPAL
4 KOPPELFLÖTE
4 VIOLES II
2 OKTAV
1-1/3 QUINTFLÖTE
CYMBALE III
8 CROMORNE
TREMULANT
GENISYS VOICE 7
GENISYS VOICE 8
CHOIR UNISON OFF
CHOIR UNENCLOSED
MELODY COUPLER CH>GT
GT-CH MANUAL TRANSFER
CHOIR MAINS OFF
CHOIR TO ANTIPH.
SOLO
16 GAMBA CELESTE II
8 FLAUTO MIRABILIS
8 SOLO GAMBA
8 GAMBA CELESTE
4 GAMBETTE CELESTE II
16 TUBA MIRABILIS
8 TUBA MIRABILIS
8 FRENCH HORN
8 CORNO DI BASSETTO
8 COR ANGLAIS
4 OCTAVE MIRABILIS
CELESTA
HARPSICHORD
TREMULANT
GENISYS VOICE 9
GENISYS VOICE 10
COUPLERS
8 GREAT TO PEDAL
4 GREAT TO PEDAL
8 SWELL TO PEDAL
4 SWELL TO PEDAL
8 CHOIR TO PEDAL
8 SOLO TO PEDAL
8 SOLO TO SWELL
16 SWELL TO GREAT
8 SWELL TO GREAT
4 SWELL TO GREAT
8 CHOIR TO GREAT
8 SOLO TO GREAT
16 SWELL TO CHOIR
8 SWELL TO CHOIR
4 SWELL TO CHOIR
8 SOLO TO CHOIR
16 STRING ON SWELL
8 STRING ON SWELL
4 STRING ON SWELL
16 STRING ON GREAT
8 STRING ON GREAT
4 STRING ON GREAT
16 STRING ON CHOIR
8 STRING ON CHOIR
4 STRING ON CHOIR
16 STRING ON SOLO
8 STRING ON SOLO
4 STRING ON SOLO
GENISYS VOICES COUPLE
GENERAL
ALL SWELLS TO SWELL
SOLO UNENCLOSED
TREMULANTS FULL
ALTERNATE TUNING
GT-PD MAINS OFF
GT-PD TO ANTIPH.
SOLO MAINS OFF
SOLO TO ANTIPH.
SWELL MAINS OFF
SWELL TO ANTIPH.
STRING MAINS OFF
STRING TO ANTIPH.
MIDI
MIDI ON PEDAL
MIDI ON SWELL
MIDI ON GREAT
MIDI ON CHOIR
MIDI ON SOLO
TOE STUD
ZIMBELSTERN
From the multiple stop list versatility to the distinct sounds available in all ALLEN organs, each stop list is independently voiced with its own audio settings.
CLASSIC ALLEN
The "signature" specification that made Allen the world's favorite organ! Allen tonal directors created the specifications of Allen digital organs by selecting their favorite samples from fine pipe organs throughout the world.
English (mainly Willis samples)
Characterized by Diapasons and weighty reeds, this style of organ building was brought to its height by renowned 19th-century British organ craftsman Henry Willis.
Cavaillé-Coll/French Romantic
Progenitor and master of the 19th-century French style with fiery and dominant reeds; symphonic tonal schemes.
Schlicker/Neo-Baroque
Neo-Baroque scalings by The Schlicker Organ Company; 20th-century revival of 17th-century North German ideals.
Arp Schnitger
Master German builder who brought the bright, incisive Werkprinzip style to its zenith.
Aeolian-Skinner
Under the tonal direction of G. Donald Harrison, this company developed the American Classic tonal design, characterized by firm and articulate principals, bright mixtures and French-style reeds. Its versatility enables the American Classic to authentically perform a broad range of musical styles.
THE ANTIDOTE FOR ACOUSTIC COMPROMISE
Dry, crisp acoustics designed to make spoken words easy to understand can make music sound brittle and uninteresting. Organ sound, especially, comes alive in more resonant spaces. Most organs include obsolete digital reverb, to artificially imitate acoustics. But not Allen. Allen's revolutionary Acoustic Portrait™ produces the "real thing"!
Based on a remarkable technology called convolution, Acoustic Portrait realistically recreates the "sonic fingerprint" of actual rooms ranging from small churches to large, famous cathedrals. Don't let the acoustics of your room stand between you and beautiful music-making. Acoustic Portrait will add the dimension you've been missing.
The World's Finest Sampled Reverb!
Voice changes made easily!
GENISYS Voices™ Provide the tonal diversity of a comprehensive stop list to even the most modest instruments. GENISYS Voices set a new standard for organist-friendly operation and include sounds that enhance every style of worship and organ literature!
