The RL-90, a Four-Manual, 92 Stop Designer Organ. Shown with optional Lighted Lattice Wood Music Rack, Antiphonal Relays, and Expression Nameplates on the Pedalboard.
Rudy Lucente Designer Series are available with many optional selections. Shown with an optional color for the console interior.
Rudy Lucente Designer Series are available with many optional selections, such as walnut drawknob stems.
RUDY LUCENTE
"The process of creating each of these organs was an exciting and rewarding experience. The combination of Allen's superior technology and
their flexibility has resulted in a set of truly comprehensive instruments."
- Rudy Lucente
REALISTIC PIPE ORGAN SOUND
GENISYS Organs with APEX TECHNOLOGY are the culmination of a multiyear engineering project that brings together advanced tone generation technology, along with massive processing power and memory storage: Resulting in the pinnacle of digital organ sound.
Housed in traditional consoles, APEX's floating-point technology offers 65 times greater resolution than fixed point systems. With 250 times the memory of previous organs, along with premium 32-bit DACs, APEX reproduces even the smallest detail of organ pipe sound. Multiple 64-bit quad core processors and gigabit ethernet control this amazing technology.
HEARING IS BELIEVING
GENISYS Organs with APEX Technology sing with a clarity and transparency of the finest pipe organs, but also include flexibility beyond the confines of traditional sounds.
GENISYS Organs with APEX Technology take advantage of Allen's new and updated samples from renowned pipe organs from around the world.
Allen's newest Aeolian-Skinner samples solidifies its American heritage in both sound and build quality.
Rudolph A. Lucente has been associated with Allen Organs for over twenty years, and recently is known as the designer of the RL-66 and RL-90 organs, comprehensive three-manual and four-manual instruments that have met with acclaim from organists nationwide. He is an assistant organist at the Wanamaker Grand Court Organ in Philadelphia, and appears regularly at Longwood Gardens in Kennett Square, PA, The Kimmel Center for the Performing Arts in Philadelphia, and Boardwalk Hall in Atlantic City, New Jersey. As a recitalist, Rudy is known for his "family friendly" presentations and dedication programs. As a clinician, his fifty-plus years as a church musician have enabled him to assist workshop attendees in most aspects of their important ministry.
Rudy studied organ with Dr. Keith Chapman and also worked with the American/Armenian composer Richard Yardumian. Since their untimely deaths, Rudy has devoted much of his musical activities to the preservation and performance of their works.
Mr. Lucente appears frequently as a recitalist and church music clinician, and is a member of the Philadelphia Organ Quartet, an ensemble that performs music arranged for four organs.
The 66-Stop Rudy Lucente RL-66 Designer church organ is the culmination of his many years of experience in the Catholic music tradition. Employing Allen's advanced technology, the organ is designed with the versatility for both worship and concert use. The stop list includes principal choruses on all divisions and independent Festival Trumpet. The Allen RL-66 offers the flexibility of six specifications to compliment any style of music.
"The RL-90 meets the need for a larger instrument, allowing Allen to offer the right choice to customers seeking the particular capabilities of the RL organs. I incorporated many of the specification attributes from the fine pipe organs that I am privileged to play, and the samples in the RL-90 have been meticulously selected to provide a cohesive ensemble, rich texture, and extraordinary solo voices. It is a privilege to have been asked to assist in this design, and I am confident that the RL-90 will meet with the same success as has the RL-66."
"The process of creating these organs was an exciting and rewarding experience. The combination of Allen's superior technology and their flexibility has resulted in two truly comprehensive instruments." - Rudy Lucente
ALLEN'S CONSTRUCTION QUALITY
Using select woods and veneers, Allen craftsmen blend modern and traditional woodworking techniques to assure precision shaping and hand-crafted console assembly. No "knock-down" quality in an Allen Organ.
OUR ORGAN INTERIOR
Allen is the only digital church organ builder to fully finish the interior wood of the console to protect it during its many years of use.
All key electronic components are housed within a protective metal chassis to guard against electrical shocks, another Allen exclusive.

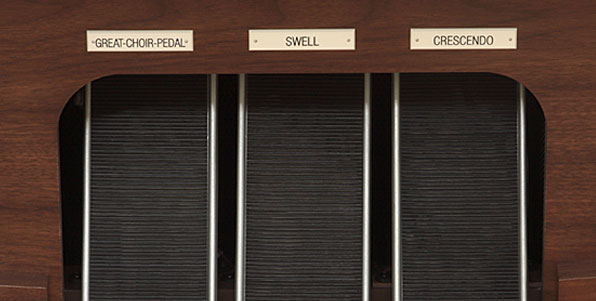

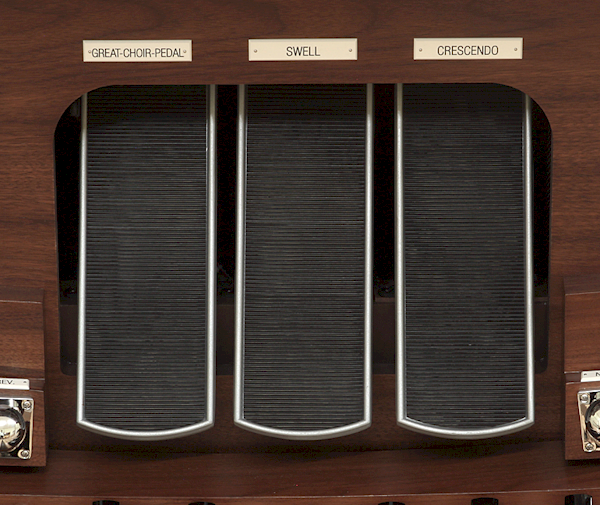

ALLEN EXPRESSION / CRESCENDO PEDALS
While plastic or wood expression pedals can be found on some church organs, they do not meet Allen's demanding quality standards. Cast Aluminum expression shoes are built to last a lifetime!
EXPRESSION SHOE CAGE
Sturdy metal construction fully protects the organ's interior against damage from pests entering the organ console. Just another example of Allen's dedication to quality and our customers.
ALLEN ORGAN - RELIABLE SERVICE
Allen dependability is legendary. Backed by a ten-year parts warranty, Allen Organs require no periodic maintenance or tuning. In the unlikely event that an Allen requires service, it is performed by factory-trained Allen technicians. Allen representatives keep a supply of spare parts on hand for service needs. The modular design found in our organs, ensures quick and easy service, without the necessity for on-site soldering.
CUSTOMER SUPPORT
The relationship between Allen and its customers doesn't end when an instrument is installed. Allen's commitment to customer satisfaction continues long after an organ is installed.
The DB-242a and DB-372a can be customized to suit your personal and church organ requirements. Just ask!
DELUXE CONTROLS
Allen designs and builds its own controls to provide the highest quality at affordable prices. From state-of-the-art Lumitech™ stops with advanced LED's to moving drawknobs, every control choice reflects Allen's uncompromising standards that ensure years of maintenance-free service.

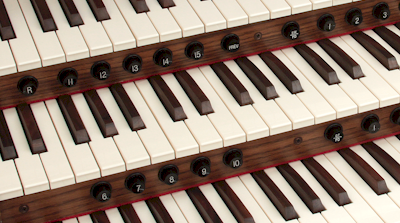

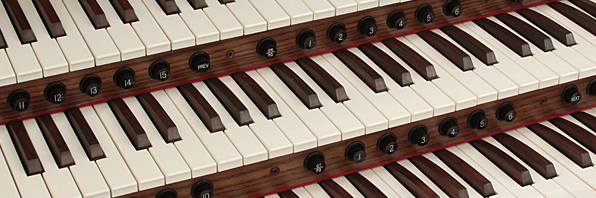

PREMIUM KEYBOARDS
The exclusive Allen keyboard is designed to allow the musician to feel the music. These keyboards are built with a level of quality that is the envy of the
industry. Each key stick is constructed of wood, felted pivot points and can be individually adjusted to keep them consistent over the long-haul.
ALLEN KEYBOARDS
PLAY VIDEO
The Allen keyboard utilizes sealed contacts and wood keysticks to provide the ultimate in touch and control. The level of quality and adjustability of Allen keyboards makes them the envy of the industry and the choice of discerning musicians.
The key contact, while unseen, is an important part of any church organ. If one fails during a performance, the entire musical program can be compromised. Allen has introduced a maintenance-free system in which a sealed reed switch is engaged by magnet. Neither dust nor the environment will compromise your music program with an Allen Organ.
RL-66 STOP LIST
Standard stop lists: Classic Allen, English (mainly Willis samples), Cavaillé-Coll, Schlicker, Arp Schnitger, Aeolian-Skinner
PEDAL
32 CONTRA VIOLONE
16 DIAPASON
16 BOURDON
16 BOURDON DOUX (SW)
16 VIOLONE (GT)
8 OCTAVE
8 GEDACKT FLÖTE
4 CHORALBASS
4 FLUTE
MIXTURE IV
32 CONTRE BOMBARDE
16 BOMBARDE
16 CONTRE TROMPETTE (SW)
8 TRUMPET
4 CLARION
GENISYS VOICE 1
GENISYS VOICE 2
SWELL
8 GEIGEN DIAPASON
8 ROHR BOURDON
8 VIOLA POMPOSA
8 VIOLA CELESTE
8 FLUTE CELESTE II
4 OCTAVE GEIGEN
4 TRAVERSE FLUTE
2 2/3 NASARD [4 ORCH. FLUTE]
2 PICCOLO [8 CLARINET]
1 3/5 TIERCE [8 FRENCH HORN]
FOURNITURE IV
16 CONTRE TROMPETTE
8 TROMPETTE
8 OBOE
8 VOX HUMANA [COR ANGLAIS]
4 CLAIRON
TREMULANT
SWELL SOLO VOICES ON
16 SWELL
UNISON OFF
4 SWELL
CELESTA
GENISYS VOICE 3
GENISYS VOICE 4
GREAT
16 VIOLONE
8 DIAPASON
8 HARMONIC FLUTE
8 BOURDON
8 GAMBA
4 OCTAVE
4 FLUTE
2 2/3 TWELFTH
2 FIFTEENTH
MIXTURE IV
16 DOUBLE TRUMPET
8 TROMBA
TREMULANT
CHIMES
MELODY COUPLER CH>GT
GT-PD UNENCLOSED
BASS COUPLER
GT-CH MANUAL TRANSFER
GENISYS VOICE 5
GENISYS VOICE 6
CHOIR
16 ERZÄHLER
8 ENGLISH DIAPASON
8 HOLZ GEDACKT
8 ERZÄHLER
8 ERZÄHLER CELESTE
4 PRINZIPAL
4 KOPPELFLÖE
4 ERZÄHLER CELESTE II
2 OKTAV
1 1/3 QUINTFLÖTE
ZIMBEL III
8 FESTIVAL TRUMPET
8 KRUMMHORN
TREMULANT
UNISON OFF
CHOIR UNENCLOSED
GENISYS VOICE 7
GENISYS VOICE 8
ANTIPHONAL
SWELL MAINS OFF
SWELL TO ANTIPHONAL
GT-CH-PD MAINS OFF
GT-CH-PD TO ANTIPHONAL
GENERAL
ALTERNATE TUNING
TREMULANTS FULL
COUPLERS
8 GREAT TO PEDAL
8 SWELL TO PEDAL
4 SWELL TO PEDAL
8 CHOIR TO PEDAL
16 SWELL TO GREAT
8 SWELL TO GREAT
4 SWELL TO GREAT
8 CHOIR TO GREAT
16 SWELL TO CHOIR
8 SWELL TO CHOIR
4 SWELL TO CHOIR
GENISYS VOICE COUPLE
MIDI
MIDI ON PEDAL
MIDI ON SWELL
MIDI ON GREAT
MIDI ON CHOIR
TOE STUD
ZIMBELSTERN
RL-90 STOP LIST
PEDAL
32 OPEN DIAPASON
32 CONTRE BOURDON
32 CONTRA VIOLONE
16 DIAPASON
16 SECOND DIAPASON (GT)
16 BOURDON
16 BOURDON DOUX (SW)
16 VIOLONE
16 CONTRA GAMBA (SO)
8 OCTAVE
8 GEDACKT FÖTE
8 GAMBA (SO)
4 CHORALBASS
4 FLUTE
MIXTURE IV
32 CONTRE BOMBARDE
32 CONTRA DOUBLE TRUMPET (GT)
16 BOMBARDE
16 DOUBLE TRUMPET (GT)
8 TROMPETTE
4 CLARION
GENISYS VOICE 1
GENISYS VOICE 2
SWELL
16 BOURDON DOUX
8 GEIGEN DIAPASON
8 GEDECKT
8 FLUTE CELESTE II
8 SALICIONAL
8 VOIX CELESTE
4 OCTAVE GEIGEN
4 TRAVERSE FLUTE
2-2/3 NASARD
2 FLAUTINO
1-3/5 TIERCE
FOURNITURE IV
16 POSAUNE
8 CORNOPEAN
8 OBOE D'AMOUR
8 VOX HUMANA
4 CLARION
TREMULANT
16 SWELL
UNISON OFF
4 SWELL
CELESTA
GENISYS VOICE 3
GENISYS VOICE 4
GREAT
16 DOUBLE DIAPASON
16 BOURDON
8 FIRST DIAPASON
8 SECOND DIAPASON
8 STOPPED DIAPASON
8 HARMONIC FLUTE
8 GAMBA
4 OCTAVE
4 SPITZ FLUTE
2-2/3 TWELFTH
2 FIFTEENTH
2 WALD FLUTE
MIXTURE IV
16 DOUBLE TRUMPET
8 TROMBA
TREMULANT
4 GREAT
CHIMES
GENISYS VOICE 5
GENISYS VOICE 6
CHOIR
16 CONTRA VIOLE
8 ENGLISH DIAPASON
8 CONCERT FLUTE
8 VIOLE
8 VIOLE CELESTE
4 OCTAVE
4 CHIMNEY FLUTE
4 VIOLES II
2 PICCOLO
1-1/3 QUINTFLÖTE
DULCIANA MIXTURE V
8 CLARINET
TREMULANT
UNISON OFF
GENISYS VOICE 7
GENISYS VOICE 8
SOLO
16 GAMBA
8 PRINCIPAL
8 FLAUTO MIRABILIS
8 SOLO GAMBA
8 GAMBA CELESTE
4 OCTAVE
4 GAMBETTE CELESTE II
GRAND MIXTURE V
16 TUBA MIRABILIS
8 TUBA MIRABILIS
8 FRENCH HORN
8 CORNO DI BASSETTO
8 ENGLISH HORN
4 OCTAVE MIRABILIS
TREMULANT
GENISYS VOICE 9
GENISYS VOICE 10
ANTIPHONAL
GT-PD MAINS OFF
GT-PD TO ANTIPHONAL
CHOIR MAINS OFF
CHOIR TO ANTIPHONAL
SWELL MAINS OFF
SWELL TO ANTIPHONAL
SOLO MAINS OFF
SOLO TO ANTIPHONAL
GENERAL
ALTERNATE TUNING
TREMULANTS FULL
SOLO UNENCLOSED
COUPLERS
8 GREAT TO PEDAL
4 GREAT TO PEDAL
8 SWELL TO PEDAL
4 SWELL TO PEDAL
8 CHOIR TO PEDAL
4 CHOIR TO PEDAL
8 SOLO TO PEDAL
4 SOLO TO PEDAL
16 SWELL TO GREAT
8 SWELL TO GREAT
4 SWELL TO GREAT
8 CHOIR TO GREAT
8 SOLO TO GREAT
16 SWELL TO CHOIR
8 SWELL TO CHOIR
4 SWELL TO CHOIR
8 SOLO TO CHOIR
8 SOLO TO SWELL
MELODY COUPLER CH>GT
GT-PD UNENCLOSED
BASS COUPLER
GT-CH MANUAL TRANSFER
GENISYS VOICE COUPLE
MIDI
MIDI ON PEDAL
MIDI ON SWELL
MIDI ON GREAT
MIDI ON CHOIR
MIDI ON SOLO
TOE STUD
ZIMBELSTERN
THE ANTIDOTE FOR ACOUSTIC COMPROMISE
Dry, crisp acoustics designed to make spoken words easy to understand can make music sound brittle and uninteresting. Organ sound, especially, comes alive in more resonant spaces. Most organs include obsolete digital reverb, to artificially imitate acoustics. But not Allen. Allen's revolutionary Acoustic Portrait™ produces the "real thing"!
Based on a remarkable technology called convolution, Acoustic Portrait realistically recreates the "sonic fingerprint" of actual rooms ranging from small churches to large, famous cathedrals. Don't let the acoustics of your room stand between you and beautiful music-making. Acoustic Portrait will add the dimension you've been missing.
The World's Finest Sampled Reverb!
Voice changes made easily!
GENISYS Voices™ Provide the tonal diversity of a comprehensive stop list to even the most modest instruments. GENISYS Voices set a new standard for organist-friendly operation and include sounds that enhance every style of worship and organ literature!
