A digital church organ is a unique product utilizing modern technology to reproduce an art form whose heritage comes from
Superior sound comes from a combination of greater experience sampling pipe organs and advanced sound-producing technology. Experience
matters! Allen introduced the world's first digitally sampled organ in 1971, nearly two decades prior to its nearest competitor. Allen's current GeniSys™ technology includes up to
48 advanced DSP's (Digital Signal Processors) working in parallel; supercomputer power for superior sound production. And Allen organs can be voiced to perfection to any school of organ
HEARING IS BELIEVING
Today, the preference for Allen sound extends even beyond the realm of digital organ customers to pipe organ owners.
Notably, Allen is chosen as the organ builder of choice to add digital voices and advanced consoles to hundreds of pipe organs throughout the world, including prestigious
European installations. With unmatched tonal quality and sophisticated technology, Allen is pleased to help preserve and advance an important art form. It's why we exist.
ALLEN'S CONSTRUCTION QUALITY
Using select woods and veneers, Allen craftsmen blend modern and traditional woodworking techniques to assure precision shaping and hand-crafted console assembly. No "knock-down" quality in an Allen Organ.
OUR ORGAN INTERIOR
Allen is the only digital church organ builder to fully finish the interior wood of the console to protect it during its many years of use.
All key electronic components are housed within a protective metal chassis to guard against electrical shocks, another Allen exclusive.

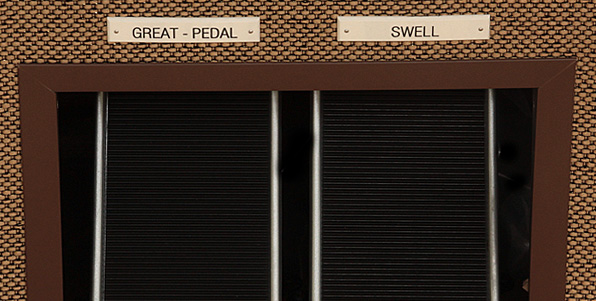

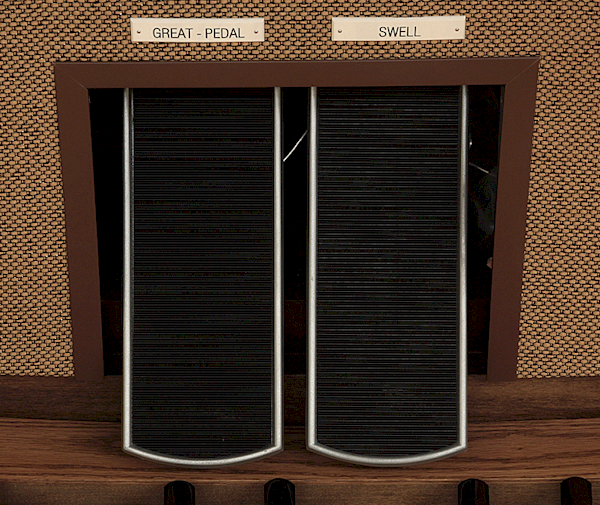

ALLEN EXPRESSION / CRESCENDO PEDALS
While plastic or wood expression pedals can be found on some church organs, they do not meet Allen's demanding quality standards. Cast Aluminum expression shoes are built to last a lifetime!

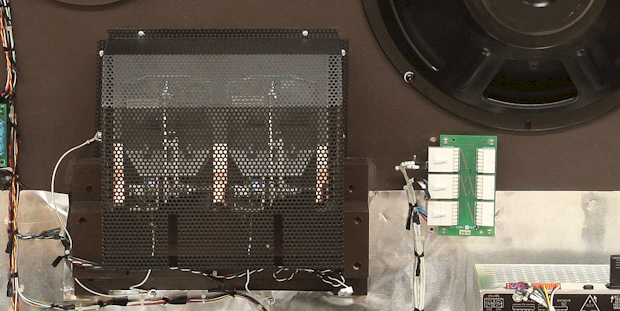

EXPRESSION SHOE CAGE
Sturdy metal construction fully protects the organ's interior against damage from pests entering the organ console. Just another example of Allen's dedication to quality and our customers.
ALLEN ORGAN - RELIABLE SERVICE
Allen dependability is legendary. Backed by a ten-year parts warranty, Allen Organs require no periodic maintenance or tuning. In the unlikely event that an Allen requires service, it is performed by factory-trained Allen technicians. Allen representatives keep a supply of spare parts on hand for service needs. The modular design found in our organs, ensures quick and easy service, without the necessity for on-site soldering.
The relationship between Allen and its customers doesn't end when an instrument is installed. Allen's commitment to customer satisfaction continues long after an organ is installed.
Allen designs and builds its own controls to provide the highest quality at affordable prices. From state-of-the-art Lumitech™ stops with advanced LED's to moving drawknobs, every control choice reflects Allen's uncompromising standards that ensure years of maintenance-free service.
The Chancel CF-4, 27 Stop, Two-manual organ is equipped with Allen's efficient LED stop controls.

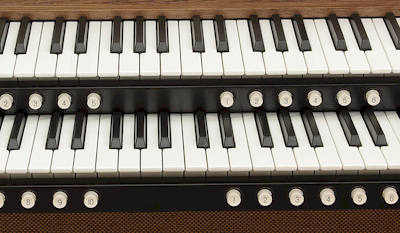

The standard keyboards supplied with Allen church organs allow Allen to provide instruments with Allen console features, quality, and sound at affordable prices.

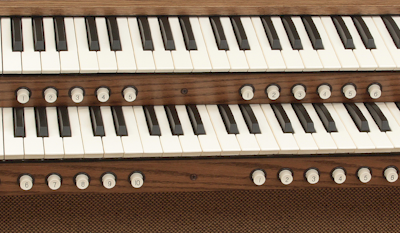

The exclusive Allen keyboard is designed to allow the musician to feel the music. These keyboards are built with a level of quality that is the envy of the
industry. Each key stick is constructed of wood, felted pivot points and can be individually adjusted to keep them consistent over the long-haul. (Optional)
The Allen keyboard utilizes sealed contacts and wood keysticks to provide the ultimate in touch and control. The level of quality and adjustability of Allen keyboards makes them the envy of the industry and the choice of discerning musicians.
The key contact, while unseen, is an important part of any church organ. If one fails during a performance, the entire musical program can be compromised. Allen has introduced a maintenance-free system in which a sealed reed switch is engaged by magnet. Neither dust nor the environment will compromise your music program with an Allen Organ.
CF-4 STOP LIST
Standard stop lists: Classic Allen, French, Baroque, English
Optional additional Theatre stop list: Wurlitzer
16 LIEBLICH GEDACKT (SW)
4 CHORAL BASS (GT)
GREAT TO PEDAL
SWELL TO PEDAL
MIDI ON PEDAL
16 LIEBLICH GEDACKT (SW)
8 HARMONIC FLUTE
8 FLUTE CELESTE II
SWELL TO GREAT
MIDI ON GREAT
From the multiple stop list versatility to the distinct sounds available in all ALLEN organs, each stop list is independently voiced with its own audio settings.
The "signature" specification that made Allen the world's favorite organ! Allen tonal directors created the specifications of Allen digital organs by selecting their favorite samples from fine pipe organs throughout the world.
19th-century French style with fiery and dominant reeds; symphonic tonal schemes.
20th-century revival of 17th-century North German ideals.
ENGLISH (mainly Willis samples)
Characterized by Diapasons and weighty reeds, this style of organ building was brought to its height by renowned 19th-century British organ craftsman Henry Willis.
WURLITZER (optional, in lieu of English)
"The Mighty Wurlitzer" was perhaps the "gold standard" of theatre organs during the silent movie era.

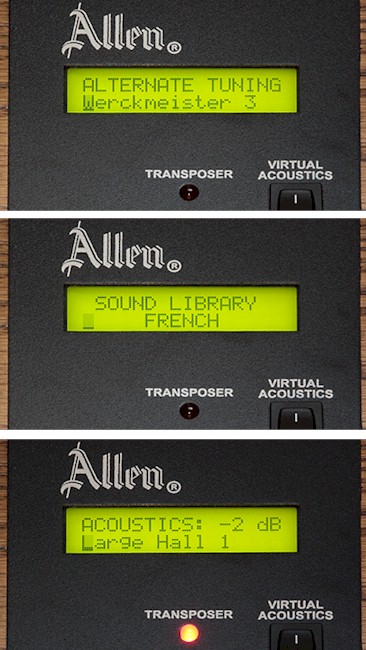

ALLEN CONSOLE CONTROLLER™
With multiple tunings and other advanced console features!

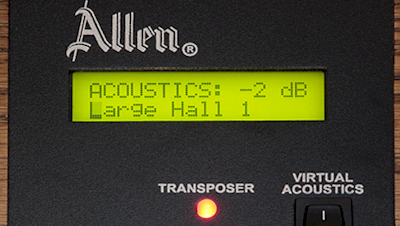

Many of the world's renowned organs have been installed in churches and cathedrals that are "acoustically friendly" (much reverberation) to organ sound projection. A dryer acoustical environment exists in many of today's churches. Through advanced DSP technology, Allen's exclusive Virtual Acoustics™ enables Renaissance™ based organs to duplicate the effect of the ambiance found in more reverberant acoustics. However, Virtual Acoustics is much more than digital reverberation and must be experienced to appreciate what it adds to any organ installation.
